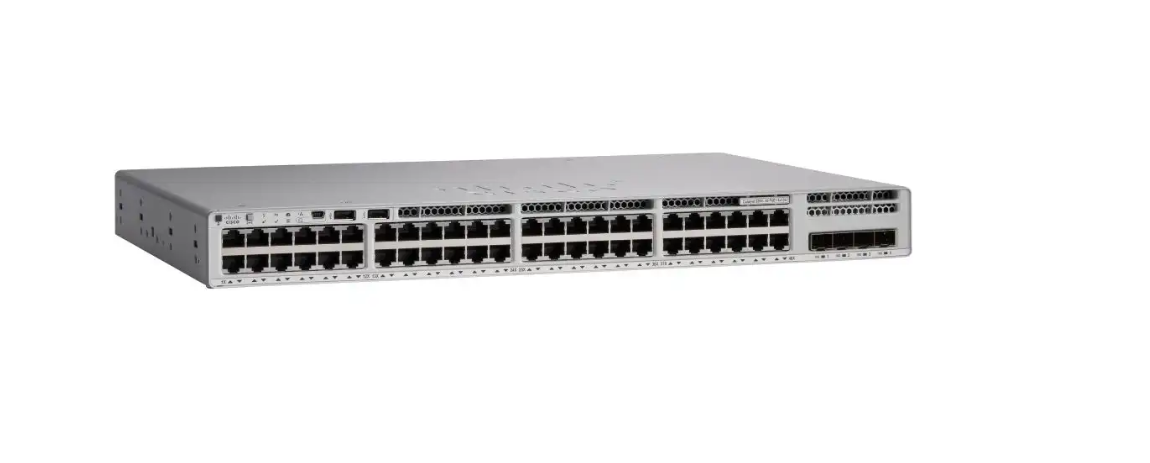

Cisco C9200L-48P-4G-E
The Cisco C9200L-48P-4G-E is an enterprise-class switch from the renowned 9200 Series, engineered to address the evolving needs of modern business networks. As a cornerstone in Cisco's intelligent switching portfolio, the c9200l-48p-4g-e delivers high-density connectivity, reliable performance, and advanced security—making it ideal for distributed enterprises, educational institutions, and managed branch deployments. At its core, this switch combines robust 48-port full POE+ support with seamless 1G fixed uplinks, giving organizations the versatility to power a range of network devices, including access points, phones, and cameras, all through a single infrastructure. The cisco C9200L-48P-4G-E integrates essential features for secure segmentation and intelligent traffic control, empowering IT teams to streamline operations across expanding campus networks.
WS-C3850-24T-S Specifications
| Specification | Details |
|---|---|
| Model | C9200L-48P-4G-E |
| Brand | Cisco |
| Downlink Ports | 48 x 10/100/1000 PoE+ Copper Ports |
| Uplink Configuration | 4 x 1G Fixed Uplinks |
| Default Power Supply | PWR-C5-1KWAC |
| Fans | Fixed Redundant |
| Software | Network Essentials |
| Chassis Dimensions | 1.73 x 17.5 x 11.3 in (4.4 x 44.5 x 28.8 cm) |
| Virtual Networks | 1 |
| Stacking Bandwidth | 80 Gbps |
| Total MAC Addresses | 16,000 |
| IPv4 Routes (ARP + Learned) | 11,000 (8,000 Direct, 3,000 Indirect) |
| IPv4 Routing Entries | 3,000 |
| IPv6 Routing Entries | 1,500 |
| Multicast Routing Scale | 1,000 |
| QoS Scale Entries | 1,000 |
| ACL Scale Entries | 1,500 |
| Packet Buffer | 6 MB |
| Flexible NetFlow Entries | 16,000 Flows |
| DRAM | 2 GB |
| Flash | 4 GB |
| VLAN IDs | 1024 |
| SVIs | 512 |
| Jumbo Frames | 9198 Bytes |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 154.76 Mpps |
| MTBF | 347,760 hours |
| Weight | 4.8 kg |
