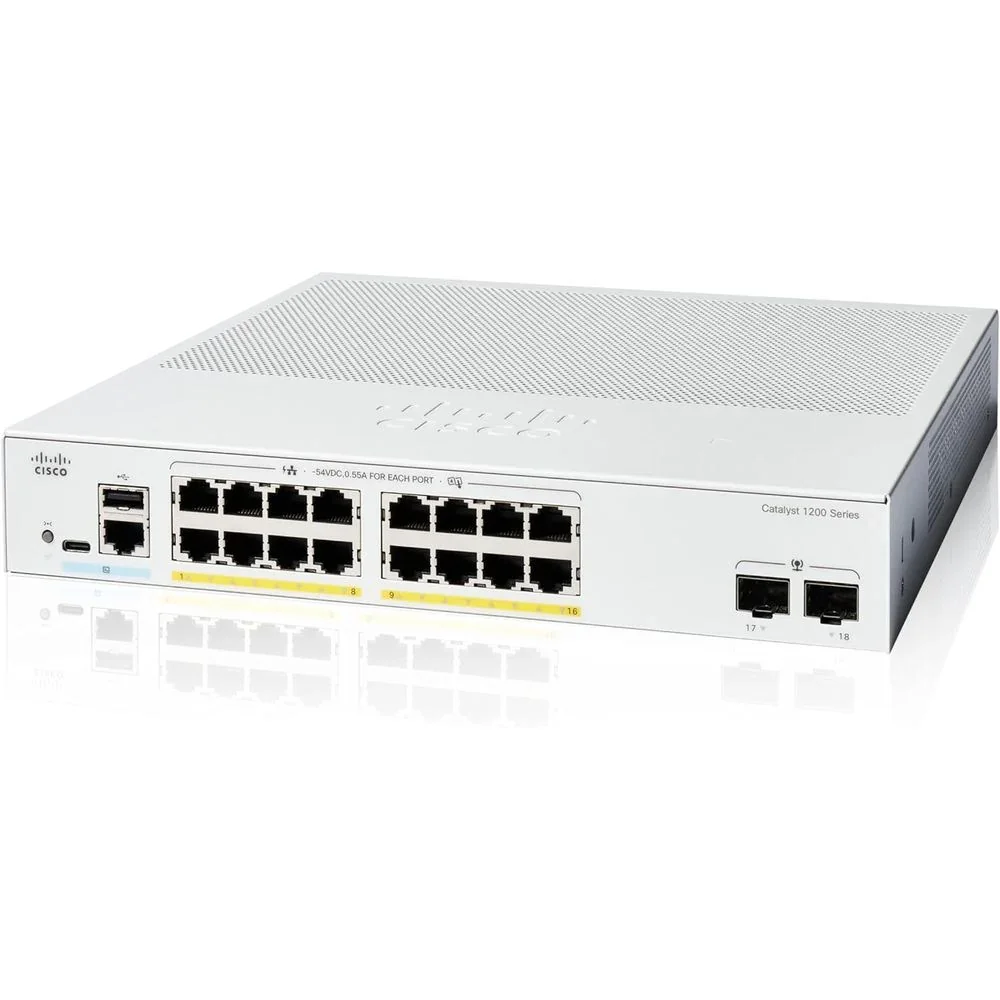

Cisco 1200 Series Switch
(C1200-16P-2G)
The Cisco C1200-16P-2G is an advanced networking solution designed to meet the growing needs of modern businesses. Equipped with 16x 10/100/1000 PoE+ ports, this switch provides robust connectivity and power supply capabilities, making it ideal for handling high-bandwidth applications, optimizing network performance, and ensuring seamless operations. Its versatile features enable reliable and efficient management of both wired and wireless networks.
C1200-16P-2G Specifications
| Capacity in millions of packets per second (mpps) (64-byte packets) | 26.78 |
|---|---|
| Power dedicated to PoE | 120W |
| Number of ports that support PoE | 16 |
| System power consumption | 110V=17.4W ; 220V=17.2W |
| Power consumption (with PoE) | 110V=143.9W ; 220V=141.4W |
| Heat dissipation (BTU/hr) | 490.7 |
| Idle Power | 110V=10.4W ; 220V=10.2W |
| Total system ports | 18x Gigabit Ethernet |
| RJ-45 portsr | 16x Gigabit Ethernet |
| Combo ports (RJ-45 + Small Form-Factor Pluggable [SFP]) | 2x SFP |
| Packet buffer | 1.5 MB |
| Unit dimensions (W x D x H) | 268 x 297 x 44 mm (10.56 x 11.69 x 1.73 in) |
| Acoustic noise | – |
| MTBF at 25°C (hours) | 706,983 |
| Unit weight | 2.38 kg (5.25 lb)) |
| Fan (number) | Fanless |
