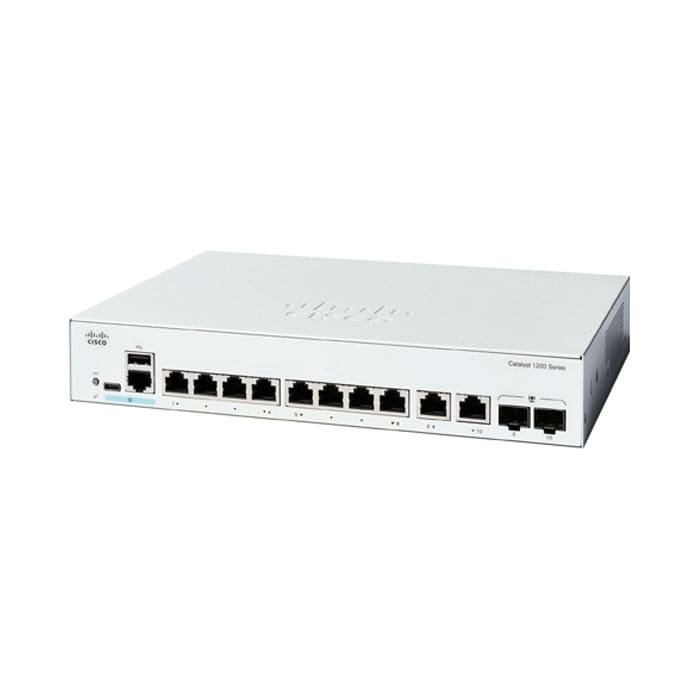

Cisco 1200 Series Switch
(C1200-8FP-2G)
The Cisco C1200-8FP-2G is a high-performance switch engineered to power your network with ease. Equipped with 8x 10/100/1000 PoE+ ports, it provides extensive connectivity options and power delivery to connected devices. This switch is a reliable addition to the Cisco C1200 series, ensuring superior performance and versatility for various applications.
C1200-8FP-2G Specifications
| Capacity in millions of packets per second (mpps) (64-byte packets) | 14.88 |
|---|---|
| Switching capacity in gigabits per second (Gbps) | 20.0 |
| Number of ports that support PoE | 120W |
| Number of PoE Ports | 8 |
| System power consumption | 110V=14.59W ;220V=14.33W |
| Power consumption (with PoE) | 110V=145.44W ; 220V=141.80W |
| Heat dissipation (BTU/hr) | 496.26 |
| Idle Power | 110V=9.75W ;220V=9.59W |
| Total system ports | 10x Gigabit Ethernet |
| RJ-45 portsr | 8x Gigabit Ethernet |
| Combo ports (RJ-45 + Small Form-Factor Pluggable [SFP]) | 8x Gigabit Ethernet |
| Packet buffer | 1.5 MB |
| Unit dimensions (W x D x H) | 268 x 185 x 44 mm (10.56 x 7.28 x 1.73 in) |
| Acoustic noise | – |
| MTBF at 25°C (hours) | 1,706,649 |
| Unit weight | 1.53 kg (3.37 lb) |
| Fan (number) | Fanless |
