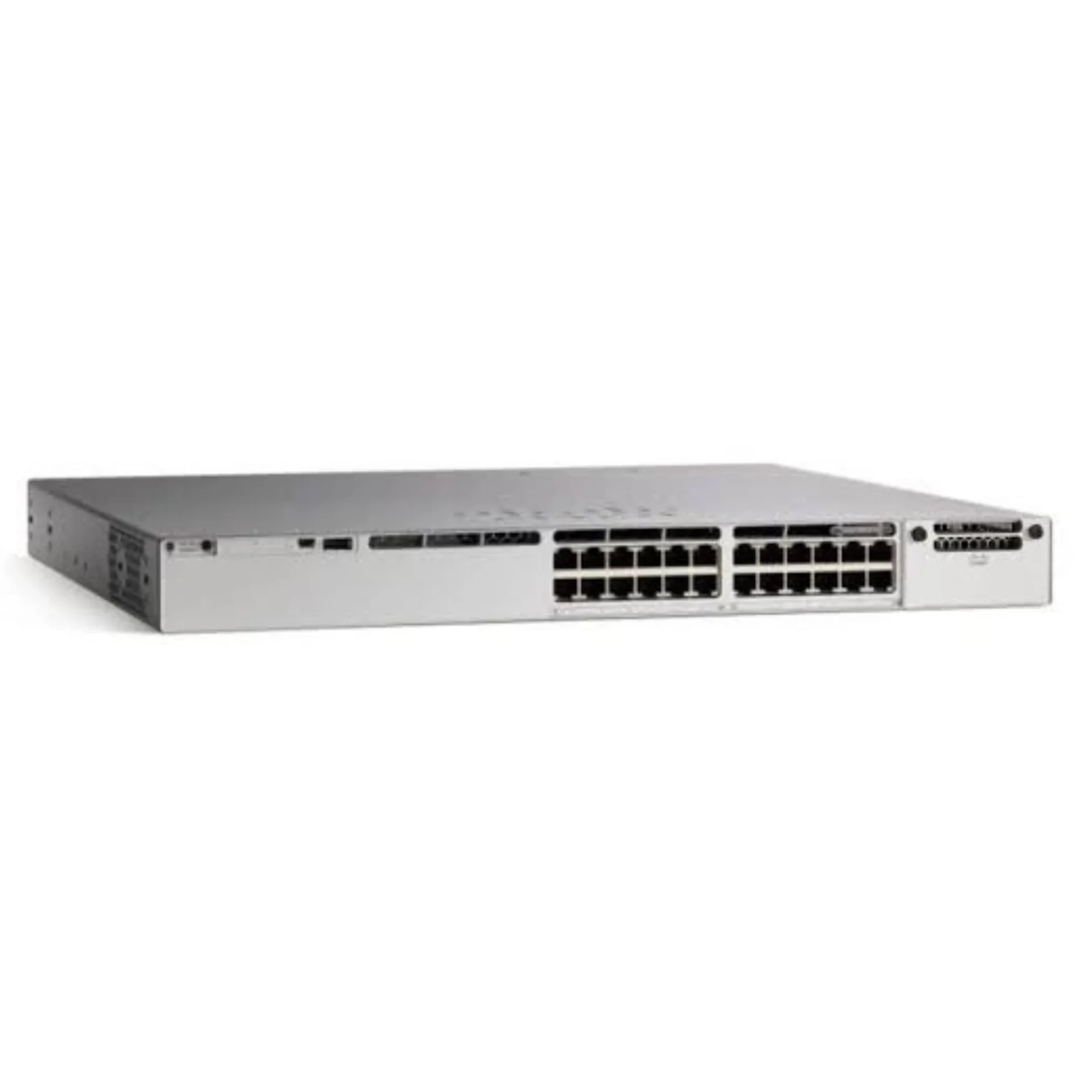

Cisco Catalyst 9300 Switch (C9300-24UXB-E)

The Cisco C9300-24UXB-E= is an enterprise-class switch tailored for modern business-critical networking scenarios. As part of the renowned Cisco Catalyst switches family, it brings exceptional performance and manageability for high-density aggregation, core, and edge deployments. With an advanced 24-port modular uplinks design and multigigabit ports supporting UPOE (Universal Power over Ethernet), the switch enables seamless scaling for both wired and wireless infrastructures. The integration of Network Essentials capabilities ensures robust Layer 2/3 features with comprehensive policy, security, and automation, helping businesses maintain secure and agile operations. Its hardware supports modular uplinks, giving organizations the ability to adapt to future bandwidth demands without disruptive upgrades. Administrators benefit from intuitive management alongside deep programmability and open interfaces for automation.

C9300-24UXB-E- Specifications

ModelC9300-24UXB-E
BrandCisco
Product DescriptionCatalyst 9300 higher scale 24-port modular uplinks mGig UPOE, Network Essentials
FRU Power SupplyYes
FRU FansYes
Modular UplinksYes
Stacking Bandwidth Support480 Gbps
Cisco StackPowerYes
Catalyst 9800 Embedded WLCYes (200 APs)
SD-Access SupportYes (256 Virtual Networks)
Total 10/100/1000, Multigigabit Copper or SFP Fiber24 Multigigabit Cisco UPOE (100M, 1G, 2.5G, 5G, or 10 Gbps)
Uplink ConfigurationModular Uplinks
Default AC Power Supply1100W AC
Available PoE power560W
Total Number of MAC Addresses64,000
Total Number of IPv4 Routes64,000
FNF Entries128,000 flow on 24- and 48-port Gigabit Ethernet, 256,000 flows on 24-port Multigigabit
Total Switched Virtual Interfaces (SVIs)1000
Switching Capacity640 Gbps
Jumbo frames9,198 bytes
DRAM8 GB
VLAN IDs4,094
Dimensions (H x W x D) inches - Chassis only1.73 x 17.5 x 17.1
Dimensions (H x W x D) inches - W/ Default Power Supply1.73 x 17.5 x 20.2
Acoustic noise - LpA45dB typical, 48 dB max
1000BASE-T PortsRJ-45 connectors, 4-pair Cat 5E UTP cabling
Management Console PortRJ-45-to-DB9 cable for PC connections
Power ConnectorsInternal power supply is an auto-ranging unit supporting input voltages between 100 (115 for 1100WAC) and 240 VAC. Use the supplied AC power cord to connect the AC power connector to an AC power outlet./td>
Electromagnetic Emissions Certifications47 CFR Part 15, CISPR22 Class A, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032 Class A, CISPR 32 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, TCVN 7189 Class A, V-3 Class A, CISPR24, EN 300 386, EN55024, TCVN 7317, V-2/2015.04, V-3/2015.04, CNS13438, KN32, KN35, IEC 61000-6-1, EN 61000-6-1, QCVN 118:2018/BTTTT, CISPR24/25, VCCI-CISPR 32 Class A, EN55035
