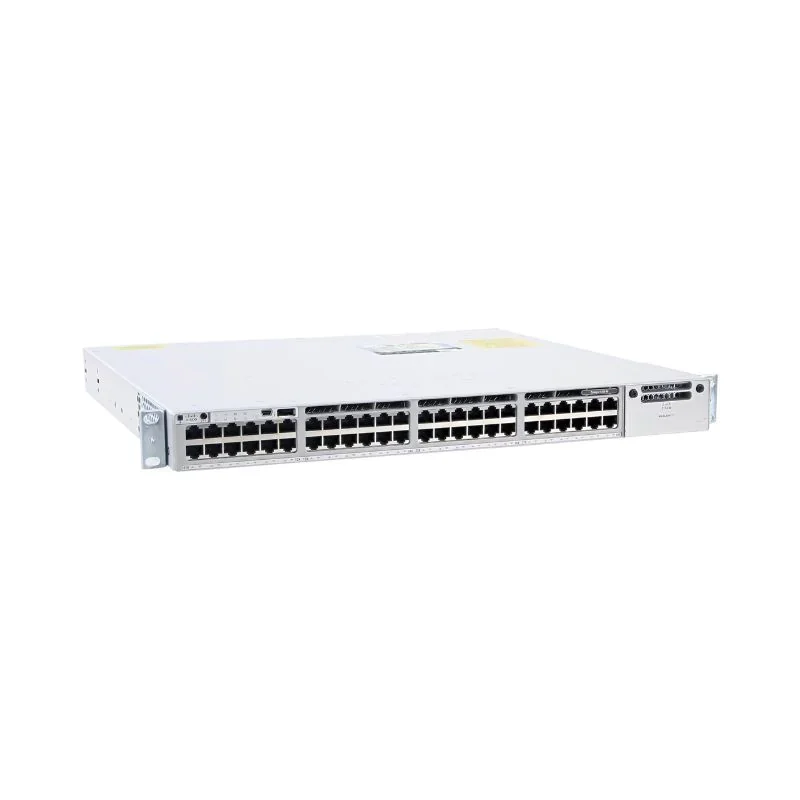

Cisco Catalyst 9300 Switch (C9300L-48T-4X-E)
The Cisco C9300L-48T-4X-E is a fixed-access enterprise switch designed for campus and branch networks. It provides high-density Gigabit connectivity, advanced Layer 2/Layer 3 features, and stackable operation. This model exemplifies stackable switching, empowering organizations with seamless scale and simplified management for ever-growing enterprise architectures. The switch supports Network Advantage and Network Essentials IOS, ensuring feature-rich, secure, and highly available operations for network switches in dynamic business environments. With support for up to 48 data ports and robust StackWise-320 technology, the C9300L-48T-4X-E enables high stacking bandwidth and operational resiliency for distributed enterprise workloads.
C9300L-48T-4X-E Specification
| Model | C9300L-48T-4X-E |
|---|---|
| Network modules options | Fixed Modules |
| Supported IOS | Network Advantage, Network Essentials |
| Stack Technology | StackWise-320 |
| Stacking bandwidth | 320 Gbps |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4,094 |
| Forwarding rate | 41.66 Mpps - 130.95 Mpps |
| Jumbo frames | 9,198 bytes |
| Switching capacity | 56 Gbps - 176 Gbps |
| Total number of MAC addresses | 32,000 |
| IPv6 routing entries | 16,000 |
| QoS scale entries | 5,120 |
| Flash | 16 MB buffer for 24 and 48 port Gigabit Ethernet models |
