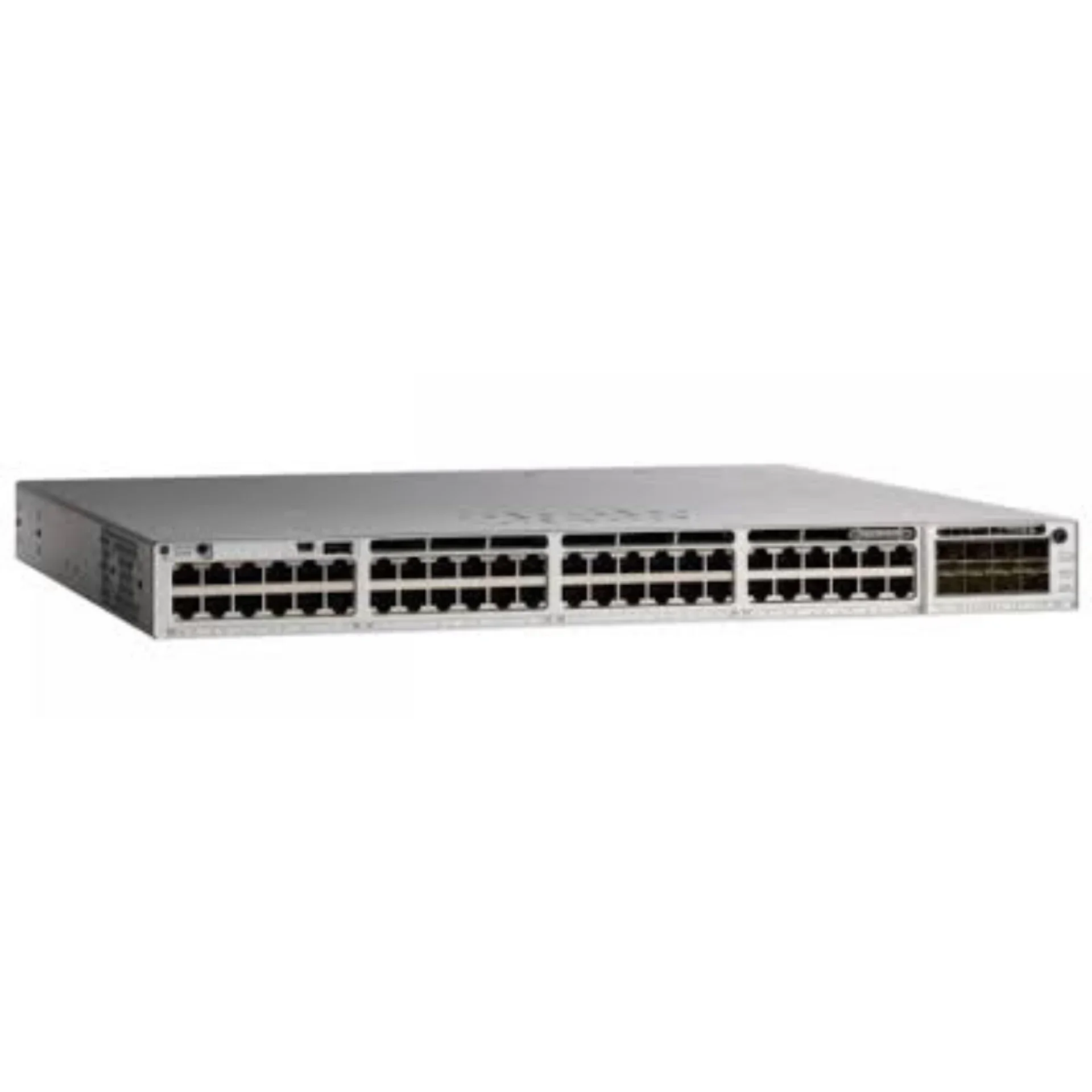

Cisco Catalyst 9300 Switch (C9300-48U-E)
The Cisco C9300-48U-E is a leading enterprise-grade network switch optimized for the modern, high-demand business environment. Offering unique flexibility, this switch is part of the Cisco Catalyst 9300 Series and delivers robust connectivity, performance, and power efficiency. As a core member of the 9300 lineup, the c9300-48u-e features 48 Cisco UPOE ports, making it ideal for powering a broad range of networked devices across diverse infrastructures. With a high switching capacity of 256 Gbps and advanced stackable architecture, the cisco C9300-48U-E is crafted for scalable expansion and seamless service continuity. Network operators benefit from innovative features such as Cisco StackWise-480 technology, StackPower, and comprehensive Layer 2 and Layer 3 support, all integral to the 9300’s application in critical business settings.
C9300-48U-E specification
| Model | C9300-48U-E |
|---|---|
| Brand | Cisco |
| Product Description | Catalyst 9300 48-port UPOE, Network Essentials |
| Total 10/100/1000 or Multigigabit Copper Ports | 48 Cisco UPOE |
| Default AC Power Supply | 1100W AC |
| Cisco StackWise-480 | Yes |
| Total number of MAC addresses | 32,000 |
| Stack Bandwidth | 480 Gbps |
| Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8,000 indirect routes) |
| IPv6 Routing Entries | 16,000 |
| VLAN IDs | 4,000 |
| DRAM | 8 GB |
| Flash | 16 GB |
| Total Switched Virtual Interfaces (SVIs) | 2,000 |
| Total Routed Ports per 9300 Series Stack | 208 |
| Jumbo frames | 9,198 bytes |
| Wireless bandwidth per switch | Up to 96 Gbps on 48-port Gigabit Ethernet model |
| Dimensions (H x W x D) | 1.73 x 17.5 x 17.5 inches |
| Electromagnetic emissions certifications | 47 CFR Part 15, CISPR22 Class A, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032 Class A, CISPR 32 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, TCVN 7189 Class A, V-3 Class A, CISPR24, EN 300 386, EN55024, TCVN 7317 |
| Safety certifications | UL 60950-1, CAN/CSA-C222.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEEE 802.3 |
