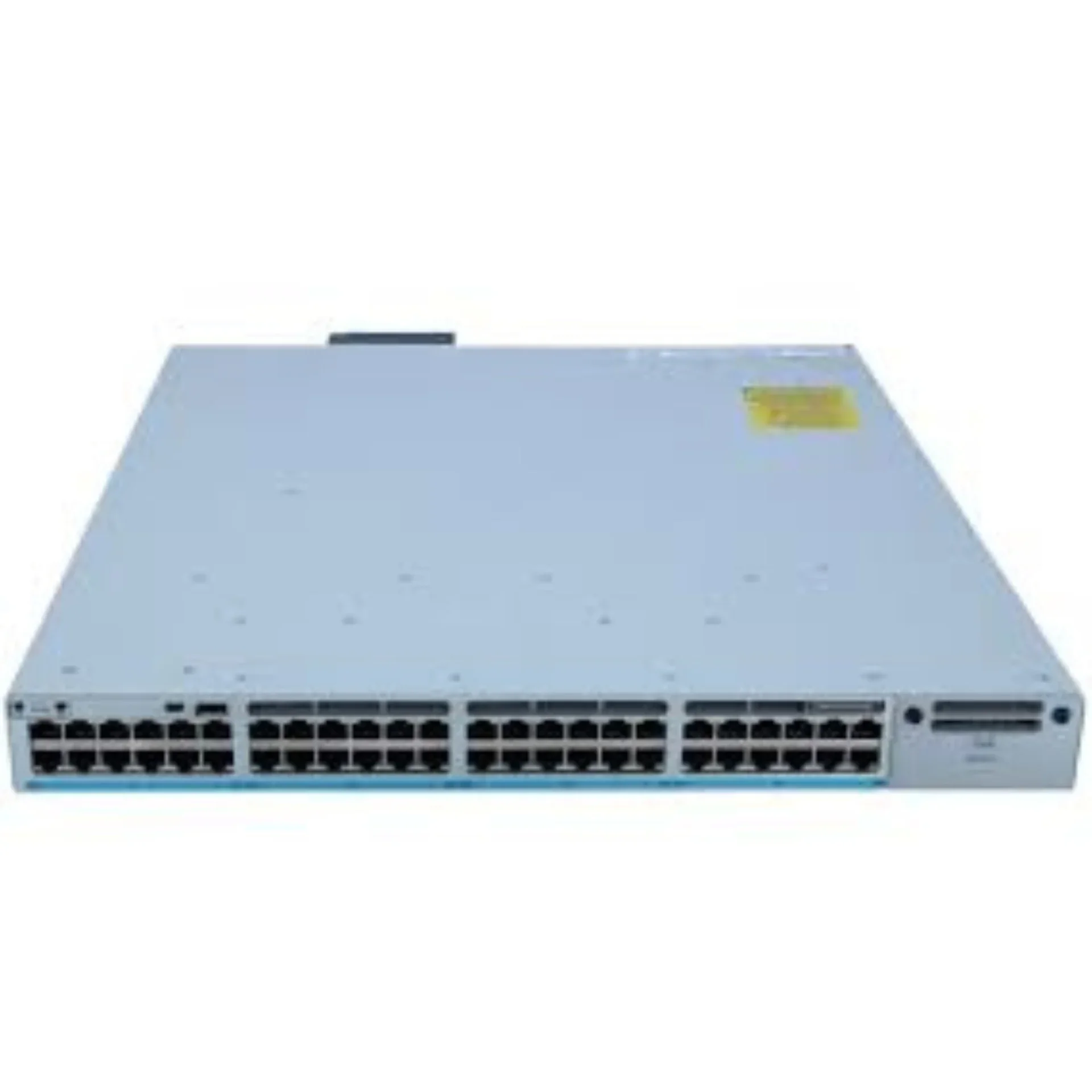

Cisco Catalyst 9300 Switch (C9300-48UN-A)
The Cisco C9300-48UN-A is a high-performance enterprise switch designed for modern business and campus environments. Built on the 9300 platform, the C9300-48UN-A offers outstanding scalability, advanced security, and seamless management for networks demanding agility and bandwidth. At its core, the c9300-48un-a provides 48 Multigigabit UPOE copper ports supporting speeds up to 5Gbps, delivering reliable connectivity for access points, workstations, and IoT devices. With cisco StackWise-480 and StackPower technology, the switch supports high-availability stacking and efficient energy utilization. Featuring a switching capacity of 640Gbps and advanced Network Advantage features, the Cisco C9300-48UN-A ensures low-latency forwarding and robust Layer 2/3 services across enterprise networks.
C9300-48UN-A specification
| Model | C9300-48UN-A |
|---|---|
| Brand | Cisco |
| Product Description | Catalyst 9300 48-port of 5Gbps Network Advantage |
| Total 10/100/1000 or Multigigabit Copper Ports | 48x 5 Gbps UPOE ports (100M, 1G, 2.5G, 5G) |
| Default AC Power Supply | 1100W AC |
| Cisco StackWise-480 | Yes |
| Total number of MAC addresses | 32,000 |
| Stack Bandwidth | 480 Gbps |
| Total Number of IPv4 Routes | 32,000 (24,000 direct routes and 8,000 indirect routes) |
| Multicast routing scale | 8000 |
| VLAN IDs | 4094 |
| DRAM | 8 GB |
| Flash | 16 GB |
| Total Switched Virtual Interfaces (SVIs) | 2,000 |
| Default power supply | PWR-C1-1100WAC-P |
| Jumbo frames | 9,198 bytes |
| Total Routed Ports Catalyst per 9300 Series Stack | 448 |
| Wireless Bandwidth per Switch | Up to 96 Gbps on 48-port Gigabit Ethernet model |
