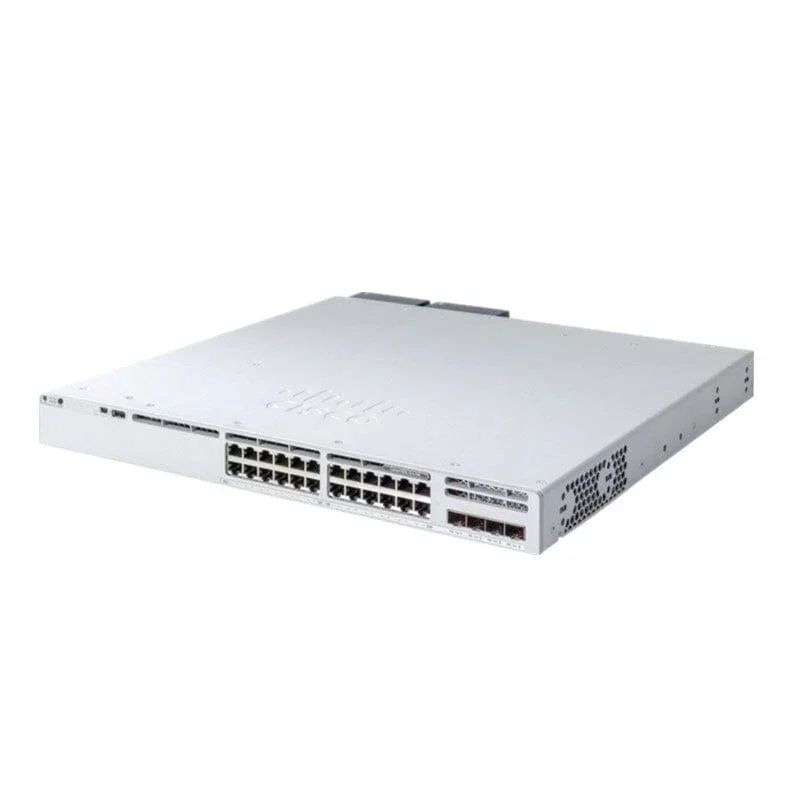

Cisco Catalyst 9300l Switch (C9300L-24UXG-4X-A)
The Cisco C9300L-24UXG-4X-A is an enterprise-grade network switch designed for modern, high-demand environments. As a member of the Catalyst 9300 family, this Cisco switch leverages advanced hardware and software features to deliver robust performance for enterprise networks. The Catalyst 9300 series is built to be the foundational building block for enterprise campus and core deployments, featuring a flexible network module design for adaptable uplink configurations. Enterprise networks benefit from superior stacking bandwidth, expansive routing tables, and high-power UPoE support, enabling the switch to manage both present needs and accommodate future growth. Integrating a powerful embedded wireless controller, the C9300L-24UXG-4X-A seamlessly supports unified wired and wireless access, simplifying operations.
C9300L-24UXG-4X-A- Specifications
| Model | C9300L-24UXG-4X-A |
|---|---|
| Brand | Cisco |
| Product Description | Catalyst 9300 24-port fixed uplinks UPoE, 8xmGig, 2x40G uplinks, Network Advantage |
| FRU Power Supply | Yes |
| FRU Fans | Yes |
| Modular Uplinks | No |
| Stacking Bandwidth Support | 320 Gbps |
| Cisco StackPower | No |
| Catalyst 9800 Embedded WLC | Yes (50 APs) |
| SD-Access Support | Yes (256 Virtual Networks) |
| Total 10/100/1000, Multigigabit Copper or SFP Fiber | 24 UPoE 8xmGig |
| Uplink Configuration | 4x 10G fixed uplinks |
| Default AC Power Supply | 1100W AC |
| Available PoE power | 880W |
| Total Number of MAC Addresses | 32,000 |
| Total Number of IPv4 Routes | 32,000 (24,000 direct routes and 8000 indirect routes) |
| FNF Entries | 64,000 on 24- and 48-port Gigabit Ethernet models |
| Total Switched Virtual Interfaces (SVIs) | 1000 |
| Switching Capacity | 272 Gbps |
| Jumbo frames | 9198 bytes |
| DRAM | 8 GB |
| VLAN IDs | 4094 |
