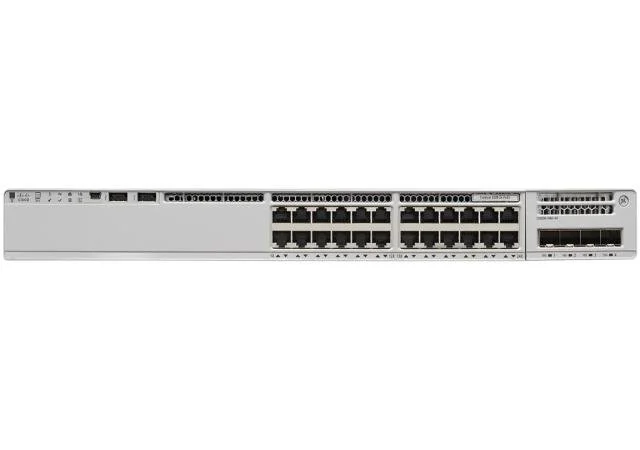

Cisco Catalyst 9200 Switch (C9200-24PXG-A)
Cisco, a global leader in networking, introduces the C9200-24PXG-A, a high-performance enterprise switch built for reliable, scalable network deployments. As a flagship in the Catalyst 9200 series, this switch is engineered to support modern enterprise needs with advanced Layer 3 capabilities, robust security, and automation. The C9200-24PXG-A delivers optimal network speeds and flexibility, thanks to its 24 × 10/100/1000BASE-T PoE+ ports and 4 × 10G SFP+ uplinks, supporting power and connectivity for IP phones, wireless access points, and IoT devices. For distributed workforces and rapidly growing infrastructures, 9200 provides intuitive management with Cisco IOS-XE, seamless integration into existing Cisco architectures, and high resiliency with hot-swappable components.
C9200-24PXG-A specification
| Model | C9200-24PXG-A |
|---|---|
| Brand | Cisco |
| Series | Catalyst 9200 Series |
| Form Factor | 1RU Fixed Switch |
| SKU Type | Essentials (E) |
| Port Configuration | 24 × 10/100/1000BASE-T PoE+ (RJ45), 4 × 10G SFP+ Uplinks (C9200-NM-4X10G module included) |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130 Mpps |
| Dimensions (H × W × D) | 1.73 × 17.5 × 13.8 in (4.4 × 44.5 × 35.0 cm) | Power Supply | 600W AC (PWR-C6-600WAC) |
| PoE Support | IEEE 802.3af/at (PoE+), UPOE (60W) not supported |
| MAC Address | 32,000 |
| VLANs | 4,096 active |
| IPv4 Routing | 16,000 routes |
| IPv6 Routing | 8,000 routes (software-assisted) |
| QoS | 8 queues per port, DSCP/CoS marking |
| Licensing | Advanced Enterprise Services (pre-installed) |
| Minimum IOS-XE Version | 16.12.1 |
| Altitude | Up to 10,000 ft (3,000 m)(3,000 m) |
| MTBF | 353,960 hours (approx. 40 years) |
| Hot-Swappable Components | Fan tray, power supplies |
| Safety Certifications | UL 60950-1, EN 60950-1 |
