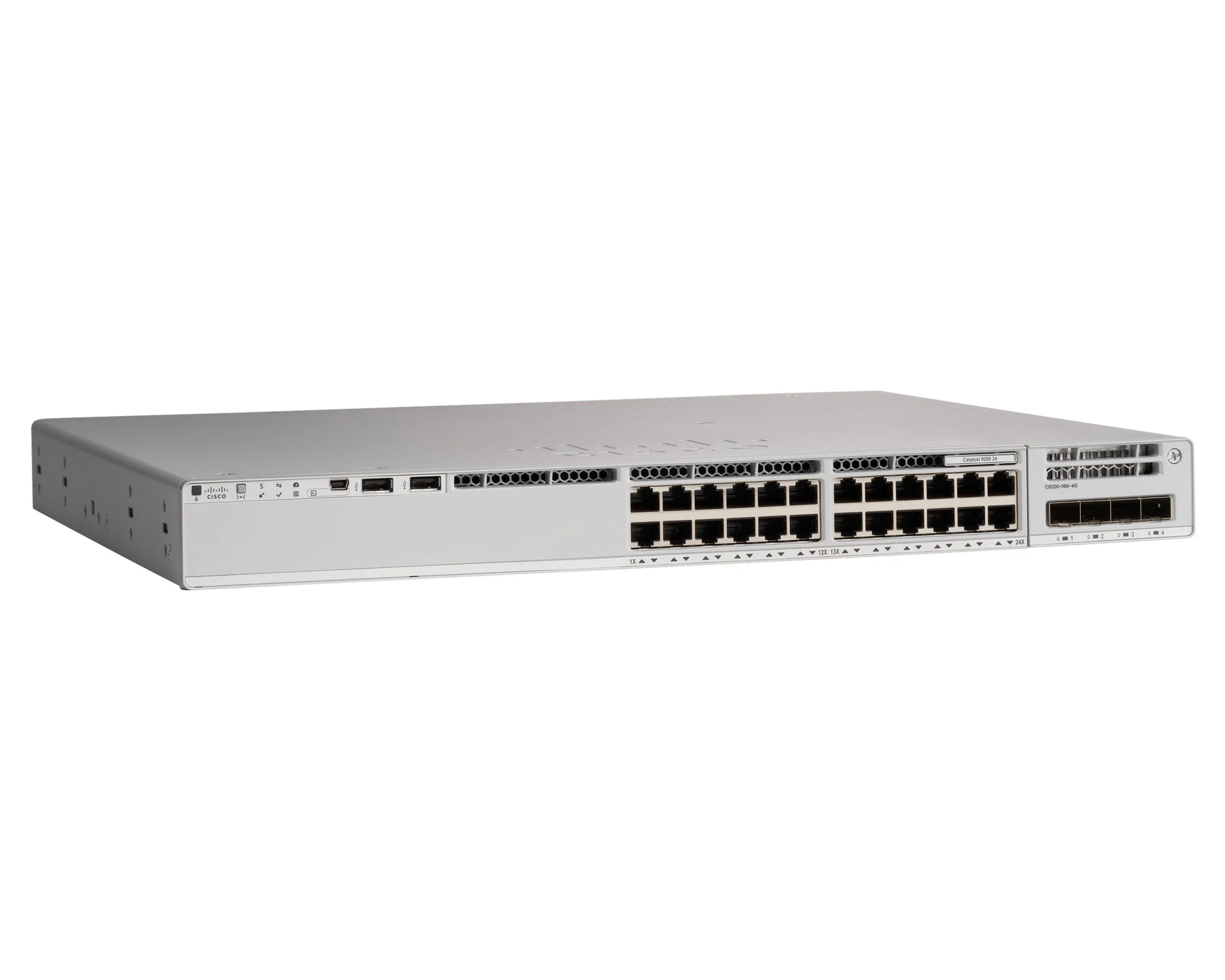

Cisco Catalyst 9200 Switch (C9200-24T-E)
The Cisco C9200-24T-E is an enterprise-grade switch purpose-built for modern business networks, integrating advanced features, reliability, and flexible deployment capabilities. As part of the renowned Catalyst 9200 Series, this cisco switch brings outstanding scalability and efficiency to organizations seeking resilient LAN solutions. With its robust port configuration, the c9200-24t-e ensures seamless connectivity for all devices, supporting 24 × 10/100/1000BASE-T (RJ45) and 4 × SFP uplinks to accommodate high-volume traffic scenarios. The 9200 series is engineered for performance and network agility, with a switching capacity of 96 Gbps and a forwarding rate of 72 Mpps, making it suitable for dynamic environments that demand uninterrupted business operations. Management is intuitive through the Cisco IOS-XE CLI, a web interface, and SNMP, enabling centralized control for IT administrators.
C9200-24T-E specification
| Model | C9200-24T-E |
|---|---|
| Brand | Cisco |
| Series | Catalyst 9200 Series |
| Form Factor | 1RU Fixed Switch |
| SKU Type | Essentials (E) |
| Port Configuration | 24 × 10/100/1000BASE-T (RJ45), 4 × 1G SFP Uplinks (C9200-NM-4X1G module included) |
| Switching Capacity | 96 Gbps |
| Forwarding Rate | 72 Mpps |
| Dimensions (H × W × D) | Base: 1.73 × 17.5 × 13.8 in (4.4 × 44.5 × 35.0 cm); With FEP/Fan: 1.73 × 17.5 × 15.4 in (4.4 × 44.5 × 39.1 cm) | Power Supply | 125W AC (PWR-C5-125WAC or PWR-C6-125WAC) |
| PoE Support | Not supported (non-PoE model) |
| MAC Address | 32,000 |
| VLANs | 4,096 active |
| IPv4 Routing | 16,000 routes |
| IPv6 Routing | 8,000 routes (software-assisted) |
| QoS | 8 queues per port, DSCP/CoS marking |
| Licensing | Essentials (pre-installed) |
| Minimum IOS-XE Version | 16.12.1 |
| Altitude | Up to 10,000 ft (3,000 m) |
| MTBF | 587,800 hours (~67 years) |
| Hot-Swappable Components | Fan tray, power supplies |
| Compliance | Safety: UL 60950-1, EN 60950-1; EMC: FCC Part 15 Class A, EN 55032 Class A; RoHS: Compliant |
