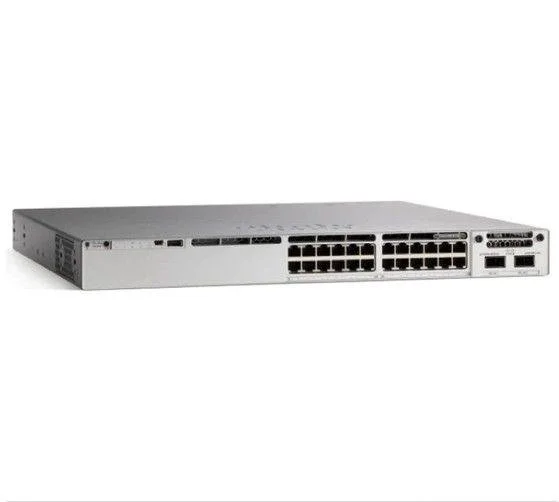

Cisco Catalyst 9200 Switch (C9200-48P-A)
The Cisco C9200-48P-A is a robust enterprise-class switch that addresses the evolving needs of modern business networks. As part of the renowned 9200 series, this switch empowers organizations by providing secure, always-on connectivity, and intelligent network control. Featuring full PoE+ support across all 48 ports, the C9200-48P-A efficiently powers network devices directly, cutting cabling complexity and costs. The flexible modular uplink options of the c9200-48p-a make it easy to adapt network infrastructure as requirements change, delivering true scalability. Smart redundancy via FRU fans and advanced Cisco Network Advantage software ensure reliable operations and simplified management for both small business and complex enterprise networks. With a non-blocking switching capacity, high forwarding rate of up to 261.9 Mpps, and a mean time between failures set remarkably high, the C9200-48P-A ensures seamless data flow and minimal downtime.
C9200-48P-A specification
| Model | C9200-48P-A |
|---|---|
| Brand | Cisco |
| Downlinks total 10/100/1000 or PoE+ copper ports | 48 ports full PoE+ |
| Uplink configuration | Modular uplink options |
| Default primary AC power supply | PWR-C6-1KWAC |
| Fans | FRU redundant |
| Software | Network Essentials |
| Chassis Dimensions | 1.73 x 17.5 x 13.8 in / 4.4 x 44.5 x 35.0 cm |
| Virtual Networks | 4 | Stacking bandwidth | 160 Gbps |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes | 14,000 (10,000 direct routes and 4,000 indirect routes) |
| IPv4 routing entries | 4,000 |
| IPv6 routing entries | 2,000 |
| Packet buffer per SKU | 6 MB buffers for 24- or 48-port Gigabit Ethernet models |
| DRAM | 4 GB |
| VLAN IDs | 4096 |
