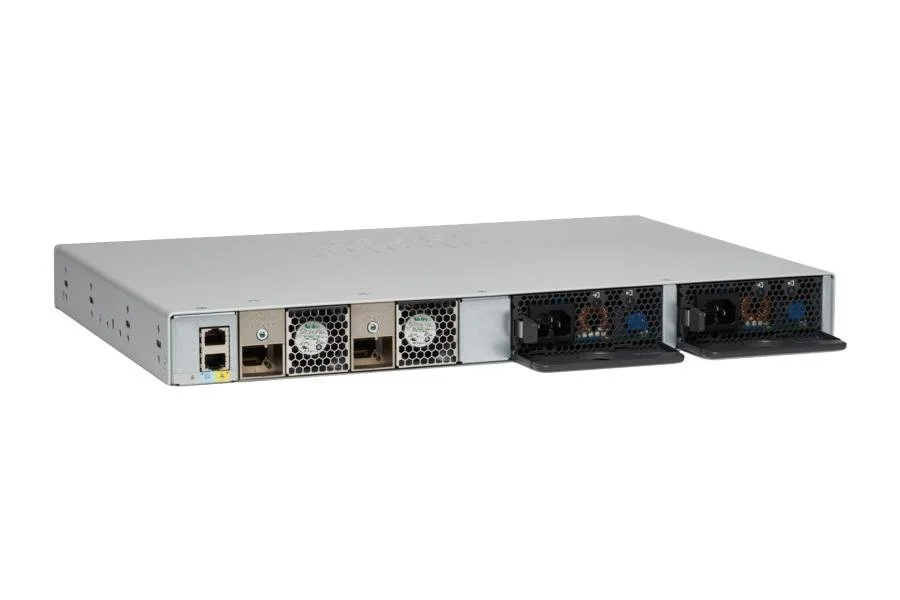

Cisco Catalyst 9200 Switch (C9200-48T-A)

Cisco introduces the C9200-48T-A, a high-performance enterprise-class switch devised for reliable access layer connectivity in modern campus and branch environments. As an essential member of the cisco Catalyst 9200 Series, the C9200-48T-A is optimized for organizations that demand robust, scalable solutions. The C9200-48T-A supports up to 48 Gigabit Ethernet ports and is powered by advanced Cisco IOS-XE, offering intuitive management and security to streamline daily operations. With 96 Gbps switching capacity, it delivers resilient throughput and advanced traffic control, making the cisco C9200-48T-A a compelling choice for future-proofing network infrastructure. Enhanced with features such as hardware-accelerated NetFlow, comprehensive support for Layer 2/3 protocols, and 4,096 VLANs, the C9200-48T-A stands out in the 9200 series by providing consistency across geographically distributed deployments.

Request A Quote

C9200-48T-A specification

ModelC9200-48T-A
BrandCisco
SeriesCatalyst 9200 Series
Form Factor1RU Fixed Switch
SKU TypeAdvantage (A) (E)
Port Configuration48 × 10/100/1000BASE-T (RJ45), 4 × 1G SFP Uplinks (C9200-NM-4X1G module included)
Switching Capacity96 Gbps
Forwarding Rate72 Mpps
Dimensions (H × W × D)Base Chassis: 1.73 × 17.5 × 13.8 in (4.4 × 44.5 × 35.0 cm); With FEP/Fan: 1.73 × 17.5 × 15.4 in (4.4 × 44.5 × 39.1 cm)
Power Supply125W AC (PWR-C5-125WAC or PWR-C6-125WAC), 100–240V AC, 50/60Hz
PoE SupportNot supported (non-PoE model)
MAC Address Table32,000
VLANs4,096 active
IPv4 Routing16,000 routes
IPv6 Routing8,000 routes (software-assisted)
QoS8 queues per port, DSCP/CoS marking
LicensingAdvantage (pre-installed)
Minimum IOS-XE Version16.12.1
AltitudeUp to 10,000 ft (3,000 m)
MTBF571,440 hours (~65 years)
Hot-Swappable ComponentsFan tray, power supplies
ComplianceUL 60950-1, EN 60950-1, FCC Part 15 Class A, EN 55032 Class A, RoHS Compliant
