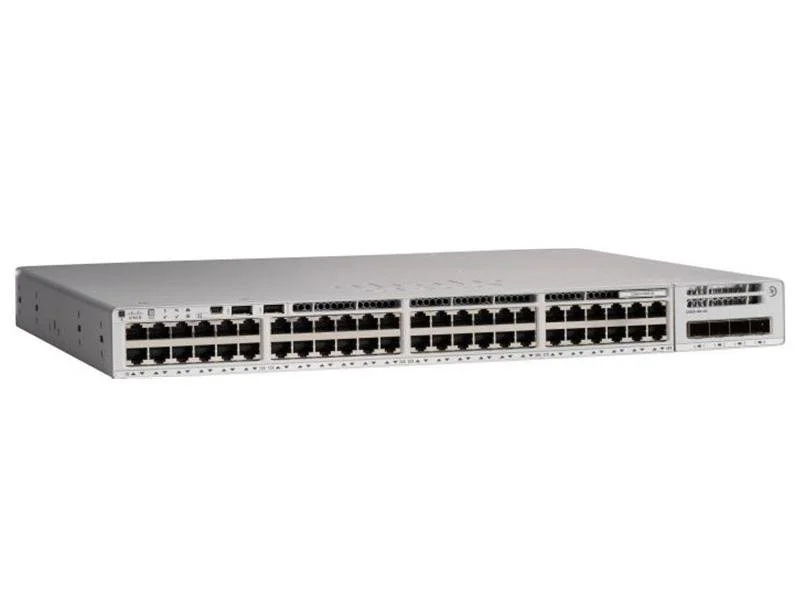

Cisco Catalyst 9200 Switch (C9200-48T-E)
The Cisco C9200-48T-E is an enterprise-class fixed configuration switch designed to deliver secure, scalable access for branch, campus, and midsize IT infrastructures. As part of the powerful Cisco Catalyst 9200 Series, the 9200 offers flexible 10/100/1000 connectivity across 48 RJ45 ports, making it ideal for modern enterprise network deployments. Cisco further augments the C9200-48T-E with advanced security, automation capabilities, and simplified management suitable for distributed organizations. The c9200-48t-e switch leverages Cisco's robust network operating system (IOS-XE 16.12.1 or later), optimally integrating with security and management protocols like SNMPv1/2c/3, SSH, and NETCONF/YANG. It boasts a 96 Gbps switching capacity and 72 Mpps forwarding rate for high-throughput network segments, outperforming legacy systems.
C9200-48T-E specification
| Model | C9200-48T-E |
|---|---|
| Brand | Cisco |
| Series | Catalyst 9200 Series |
| Product Type | Fixed Configuration Switch |
| License Level | Essentials (E) |
| Chassis Dimensions (H×W×D, Base Unit) | 1.73 × 17.5 × 13.8 in (4.4 × 44.5 × 35.0 cm) |
| Chassis Dimensions (With FEP/Fan) | 1.73 × 17.5 × 15.4 in (4.4 × 44.5 × 39.1 cm) |
| Fixed Ports | 48 × 10/100/1000BASE-T (RJ45) |
| Uplink Ports | 4 × 1G SFP (included with C9200-NM-4X1G module) | Input Voltage | 100–240V AC, 50/60Hz |
| PoE Support | IEEE 802.3af/at (PoE+); UPOE (60W) not supported |
| MAC Addresses | 72 Mpps |
| Buffer Memory | 16 MB shared |
| MAC Address Table | 32,000 entries |
| VLAN Support | 4,096 active VLANs, 1,500 STP instances |
| Power Supply | 125W AC (PWR-C5-125WAC or PWR-C6-125WAC) |
| Input Voltage | 100–240V AC, 50/60Hz |
| Buffer Memory | 16 MB shared |
| MTBF | 571,440 hours (~65 years) |
| Operating Temperature | Standard: 32°F to 104°F (0°C to 40°C); Short-term: -5°C to 50°C (up to 96 hours/year) |
| Altitude | Up to 10,000 ft (3,000 m) |
| Noise Level (25°C ambient) | LpA: 42 dB typical, 45 dB max; LwA: 5.3 B typical, 5.6 B max |
