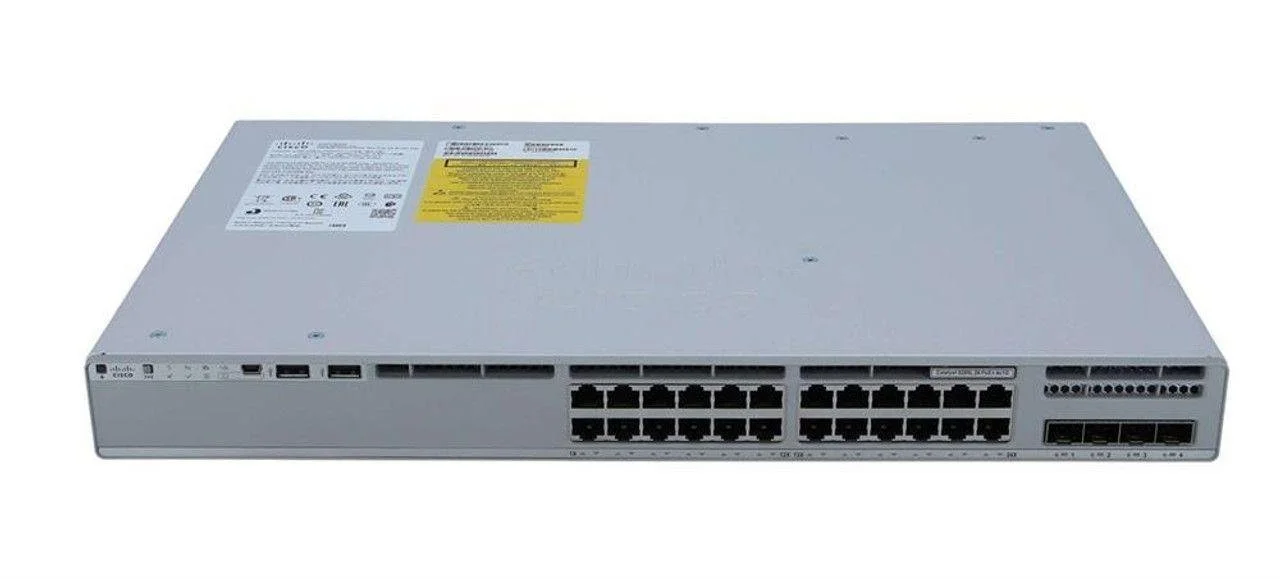

Cisco Catalyst 9200L Switch (C9200L-24P-4G-A)
The Cisco C9200L-24P-4G-A is a robust enterprise-grade switch engineered for advanced, secure, and scalable business networking across diverse environments. Belonging to the renowned Cisco 9200 family, this model leverages a fixed configuration platform to deliver optimal network performance for mid-sized businesses and branch offices. Thanks to the versatility of the 9200 architecture, users enjoy seamless network integration with trusted Cisco management features. The C9200L-24P-4G-A is especially suitable for organizations seeking reliable power delivery, offering PoE+ support and a 370W total PoE budget, efficiently powering a wide range of connected devices.
C9200L-24P-4G-A specification
| Model | C9200L-24P-4G-A |
|---|---|
| Brand | Cisco |
| Series | Catalyst 9200L Series |
| Product Type | Fixed-configuration switch |
| License Level | Advantage (A) |
| Chassis Dimensions (H×W×D) | Base Unit: 1.73 × 17.5 × 11.3 in (4.4 × 44.5 × 28.8 cm); With FEP/Fan: 1.73 × 17.5 × 12.9 in (4.4 × 44.5 × 32.9 cm) |
| Fixed Ports | 24 × 10/100/1000BASE-T (RJ45) with PoE+ support; 4 × 1G SFP uplinks |
| PoE Budget | 370W total PoE power, supports 802.3af/at PoE+ |
| Power Supply | 600W AC (PWR-C5-600WAC or PWR-C6-600WAC) | Input Voltage | 100–240V AC, 50/60Hz |
| Switching Capacity | 96 Gbps |
| MAC Address Table | 32,000 entries |
| VLAN Support | 4,096 active VLANs, 1,500 STP instances |
| Software Licensing | Advanced (pre-installed) |
| Minimum IOS-XE | 16.12.1 |
| MTBF | 392,210 hours (~44.8 years) |
| Layer 3 Routing | OSPF, EIGRP, BGP, IS-IS, PIM, VRF-lite |
| Security Features | 802.1X, MACsec, TrustSec, Flexible NetFlow, sFlow |
| Environmental - Operating Temperature | Standard: 32°F to 104°F (0°C to 40°C), Short-term: -5°C to 50°C (up to 96 hours/year) |
| Environmental - Humidity | 5% to 90% non-condensing |
| Environmental - Altitude | Up to 10,000 ft (3,000 m) |
