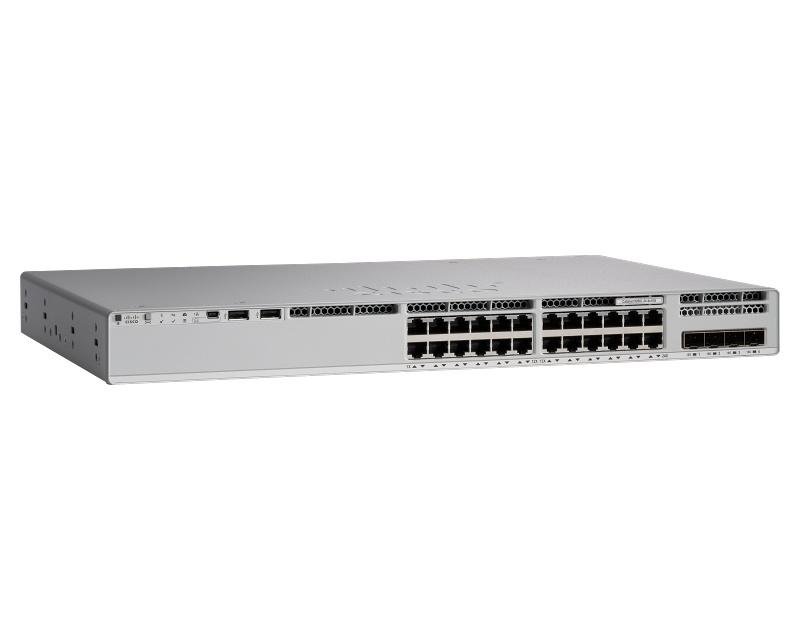

Cisco Catalyst 9200L Switch (C9200L-24P-4X-A)
Cisco’s C9200L-24P-4X-A is a robust enterprise-class switch built to deliver resilient networking for modern business environments. Part of the Catalyst 9200 series, this model advances the legacy of reliable Cisco solutions, delivering scalable and efficient Layer 2/3 switching for distributed campuses and secure branch deployments. At its core, the 9200 series stands out for its comprehensive feature set, highlighted by the c9200l-24p-4x-a’s support for advanced PoE+ on all 24 access ports, fast 4x 1G SFP uplinks, and energy-efficient operation. The cisco platform ensures sophisticated security, powerful routing protocols like OSPF, EIGRP, RIP, and BGP, and rock-solid compliance to global standards.
C9200L-24P-4X-A specification
| Model | C9200L-24P-4X-A |
|---|---|
| Brand | Cisco |
| Series | Catalyst 9200L Series |
| Product Type | Fixed-configuration switch |
| License Level | Advantage (A) |
| Chassis Dimensions (Base Unit) | 1.73 × 17.5 × 11.3 in (4.4 × 44.5 × 28.8 cm) |
| Chassis Dimensions (With FEP/Fan) | 1.73 × 17.5 × 12.9 in (4.4 × 44.5 × 32.9 cm) |
| Fixed Ports | 24 × 10/100/1000BASE-T (RJ45) with PoE+, 4 × 1G SFP uplinks |
| Switching Capacity | 96 Gbps | Forwarding Rate | 72 Mpps |
| Buffer Memory | 16 MB shared |
| MAC Address Table | 32,000 entries |
| VLAN Support | 4,096 active VLANs, 1,500 STP instances |
| Power Supply | 600W AC (PWR-C5-600WAC or PWR-C6-600WAC) |
| Input Voltage | 100–240V AC, 50/60Hz |
| MTBF | 390,310 hours (~44.6 years) |
| PoE Budget | 370W total PoE power, supports 802.3af/at PoE+ |
| Licensing | Advantage (pre-installed) |
| Minimum IOS-XE Version | 16.12.1 |
| Layer 3 Routing | Static routing, RIP, EIGRP, OSPF, BGP |
| Security Features | 802.1X, MACsec, TrustSec, Flexible NetFlow, sFlow |
