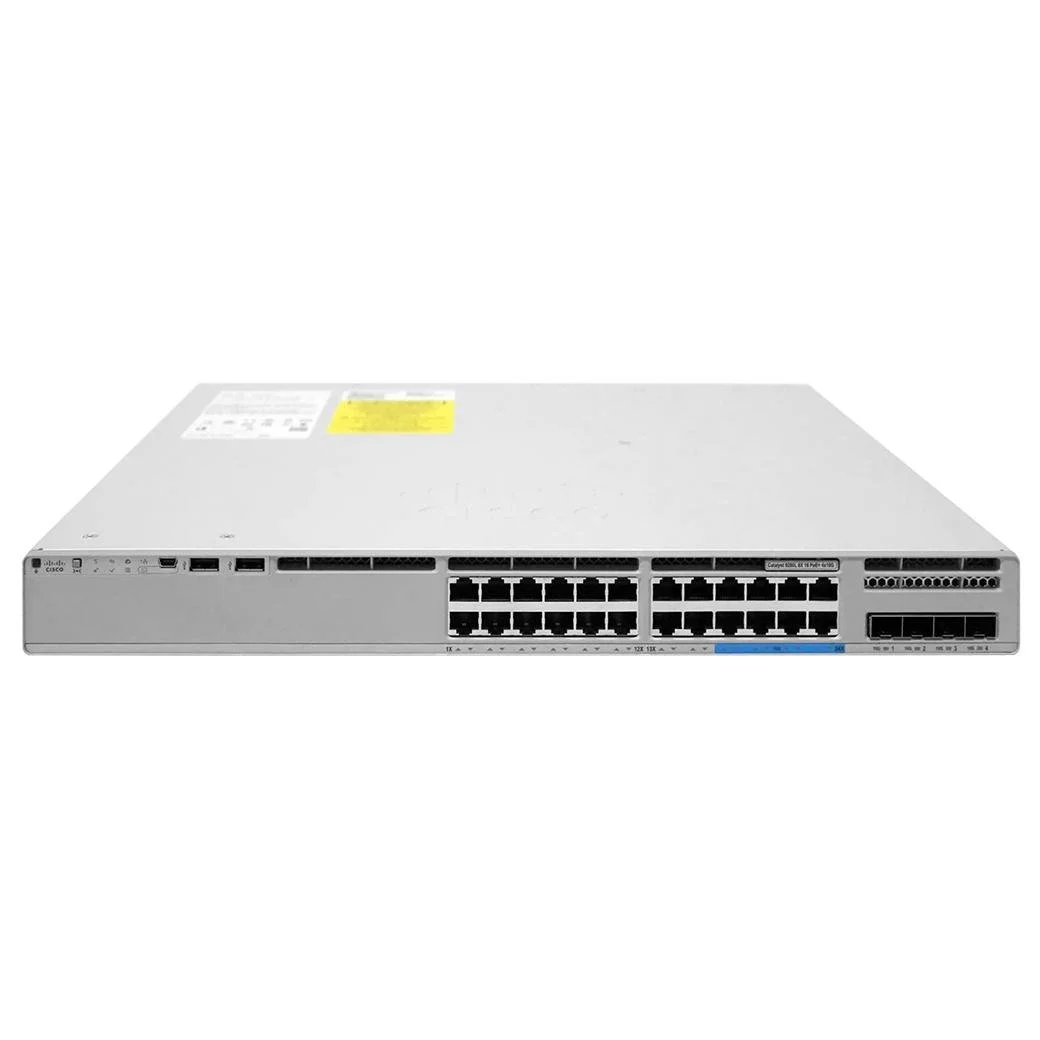

Cisco Catalyst 9200L Switch (C9200L-24PXG-4X-E)
The Cisco C9200L-24PXG-4X-E is a next-generation enterprise switch built for high-performance access and secure management in modern network environments. As part of the Cisco 9200 series, this model delivers robust, energy-efficient networking for growing business and campus infrastructures. By integrating up to 24 PoE+ downlink ports and four fixed 10G uplinks, the C9200L-24PXG-4X-E ensures streamlined operations for diverse endpoints, from IP phones and security cameras to wireless access points and edge devices. Its stacking bandwidth, up to 80 Gbps, dramatically simplifies expansion for organizations experiencing rapid scaling. The 9200 platform boosts network agility through advanced layer 2/3 forwarding, innovative security, and rich quality of service, all managed through Ciscoβs intuitive software suite.
C9200L-24PXG-4X-E specification
| Model | C9200L-24PXG-4X-E |
|---|---|
| Brand | Cisco |
| Downlinks Total Ports | 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) |
| Uplink configuration | 4x 10G fixed uplinks |
| Primary AC Power Supply | PWR-C5-600WAC |
| Fans | Fixed redundant |
| Software | Network Essentials |
| Chassis Dimensions | 1.73 x 17.5 x 13.8 in (4.4 x 44.5 x 35.0 cm) |
| Virtual Networks | 1 | Total number of MAC addresses | 16,000 |
| IPv4 routing entries | 3,000 |
| IPv6 routing entries | 1,500 |
| DRAM | 2 GB |
| Flash | 4 GB |
| VLAN IDs | 1024 |
| Jumbo frames | 9,198 bytes |
| Switching capacity | 272 Gbps |
| Wireless Bandwidth per Switch | N/A |
| Mean Time Between Failures (hours) | 379,410 |
| Forwarding rate | 214.28 Mpps |
