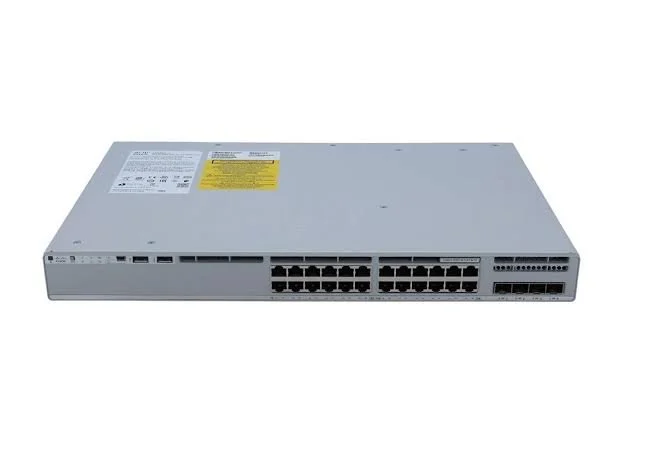

Cisco Catalyst 9200L Switch (C9200L-24T-4G-E)
The C9200L-24T-4G-E is a Cisco Catalyst 9200L fixed-configuration data switch with 24 10/100/1000BASE-T ports and four fixed 1G SFP uplinks. With Network Essentials licensing, StackWise-80 support, and two power-supply slots, it is designed for branch and campus access networks that do not require PoE.
C9200L-24T-4G-E specification
| Model | C9200L-24P-4G-E |
|---|---|
| Brand | Cisco |
| Series | Catalyst 9200L Series |
| Product Type | Fixed-configuration switch |
| License Level | Network Essentials (E), pre-installed |
| Port Configuration | 24 × 10/100/1000BASE-T (RJ45) PoE+ ports |
| Uplink Configuration | 4 × 1G SFP fixed uplinks |
| Switching Capacity | 56 Gbps |
| Switching Capacity with Stacking | 136 Gbps | Stacking | StackWise-80; 80 Gbps; up to 8 same-license C9200L switches |
| Stacking Hardware | C9200L-STACK-KIT= |
| PoE Standard | IEEE 802.3af/at PoE+ |
| Power Supply | PWR-C5-600WAC |
| Input Voltage | 100–240V AC, 50/60Hz |
| Total MAC Addresses | 16,000 |
| VLAN IDs | 4094 |
| Chassis Dimensions | 1.73 × 17.5 × 11.3 in (4.4 × 44.5 × 28.8 cm) |
| Chassis + FEP + Fan Dimensions | 1.73 × 17.5 × 12.9 in (4.4 × 44.5 × 32.9 cm) |
| Chassis Weight | 4.71 kg |
| Shipping Weight (with Packaging) | 14.83 kg |
| MTBF | 392,210 hours |
