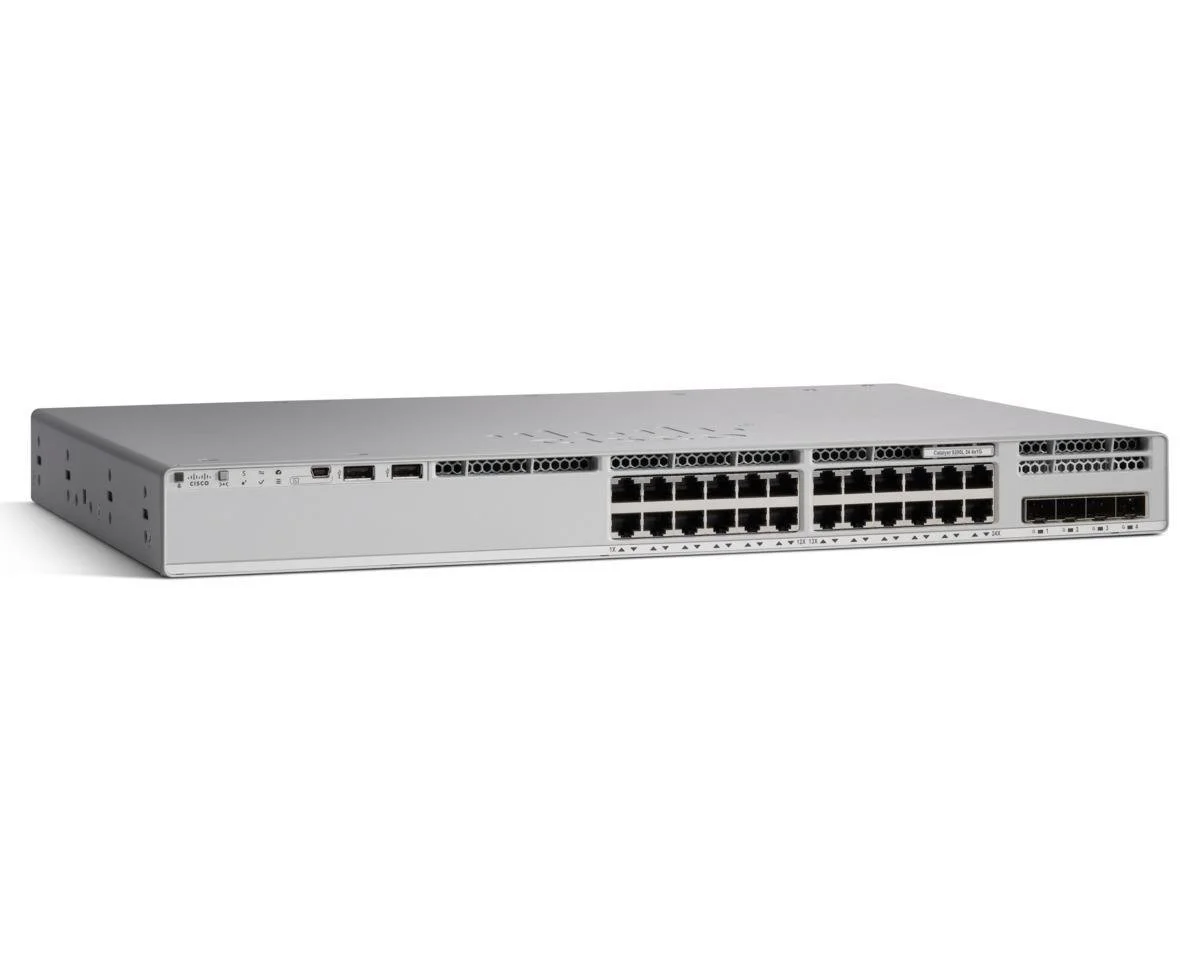

Cisco Catalyst 9200L Switch (C9200L-24T-4X-A)

The Cisco C9200L-24T-4X-A is an enterprise-class switch tailored for secure, scalable, and highly resilient business network environments. As a Cisco Catalyst member, it empowers organizations with robust, rack-mountable connectivity delivering outstanding reliability for branch offices, mid-sized businesses, and distributed campus deployments across Asia, Europe, Africa, and North America. This advanced switch features comprehensive Layer 3 routing functions natively, enabling streamlined network segmentation and simplified deployment. The integrated Network Advantage software suite provides cutting-edge security, automation, and monitoring, unlocking efficient management and policy enforcement for distributed enterprises and managed service providers. With 24 10/100/1000 data ports and four fixed 10G uplinks, it meets today's bandwidth demands and anticipates tomorrow's expansion needs.

C9200L-24T-4X-A specification

ModelC9200L-24T-4X-A
BrandCisco
Downlinks total 10/100/1000 or PoE+ copper ports24 ports data
Uplink configuration4x 1G fixed uplinks
Default primary AC power supplyPWR-C5-125WAC
FansFixed redundant
SoftwareNetwork Essentials
Chassis Dimensions1.73 x 17.5 x 11.3 in (4.4 x 44.5 x 28.8 cm)
Virtual Networks1
Total number of MAC addresses16,000
IPv4 routing entries3,000
IPv6 routing entries1,500
DRAM2 GB
Flash4 GB
VLAN IDs1024
Jumbo frames9198 bytes
Switching capacity128 Gbps
Flexible NetFlow (FNF) entries16,000 flows on 24- and 48-port Gigabit Ethernet models
Total Switched Virtual Interfaces (SVIs)512
Forwarding rate190.4 Mpps
