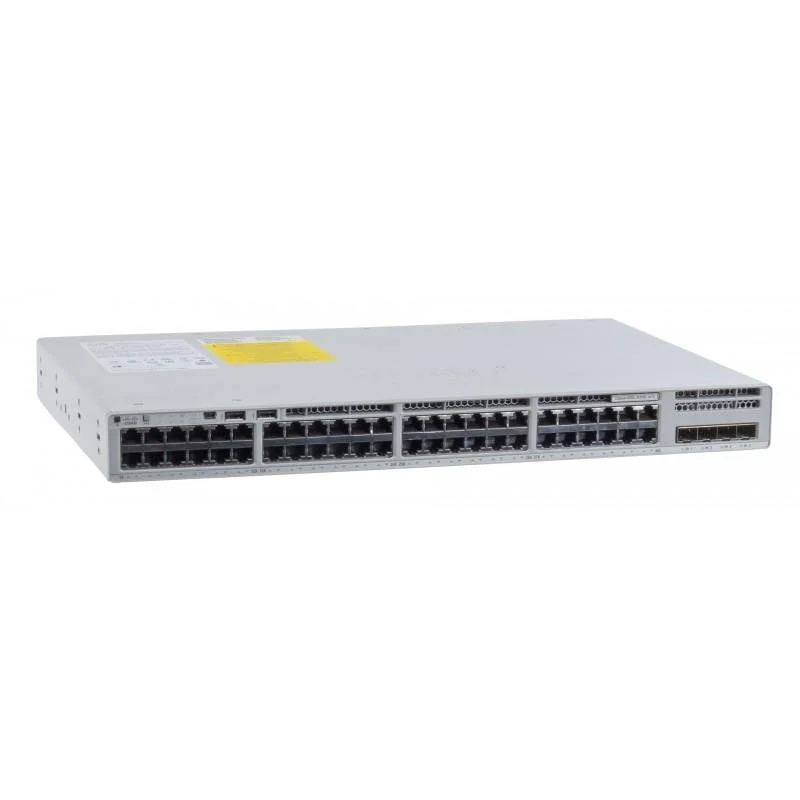

Cisco Catalyst 9200L Switch (C9200L-48P-4G-E)
The C9200L-48P-4G-E is a Cisco Catalyst 9200L fixed-uplink access switch with 48 full PoE+ 10/100/1000 copper ports and 4 fixed 1G uplinks. It combines Network Essentials software, StackWise-80 support, and 740W of available PoE power with one PWR-C5-1KWAC power supply for campus and branch access deployments.
C9200L-48P-4G-E specification
| Model | C9200L-48P-4G-E |
|---|---|
| Brand | Cisco |
| Product Description | Catalyst 9200L 48-port PoE+ 4x1G uplink Switch, Network Essentials |
| Product Type | Fixed-uplink managed access switch |
| Software | Network Essentials |
| Operating System | Cisco IOS XE |
| Downlinks Total 10/100/1000 or PoE+ Copper Ports | 48 ports full PoE+ |
| Uplink Configuration | 4 × 1G fixed uplinks |
| Default Primary AC Power Supply | PWR-C5-1KWAC | AC Input | 100–240 VAC |
| Fans | Fixed redundant |
| PoE Standard | IEEE 802.3af and IEEE 802.3at |
| Maximum PoE+ per Port | Up to 30W |
| Switching Capacity | 104 Gbps |
| VLAN IDs | 4094 |
| Chassis Dimensions | 1.73 × 17.5 × 11.3 in (4.4 × 44.5 × 28.8 cm) |
| Chassis Weight | 10.58 lb (4.80 kg) |
| Shipping Weight | 14 kg with packaging (user-confirmed) |
| Acoustic Noise with 48 PoE+ Ports Loaded | 42 dB typical; 45 dB maximum |
| Product License | Network Essentials |
