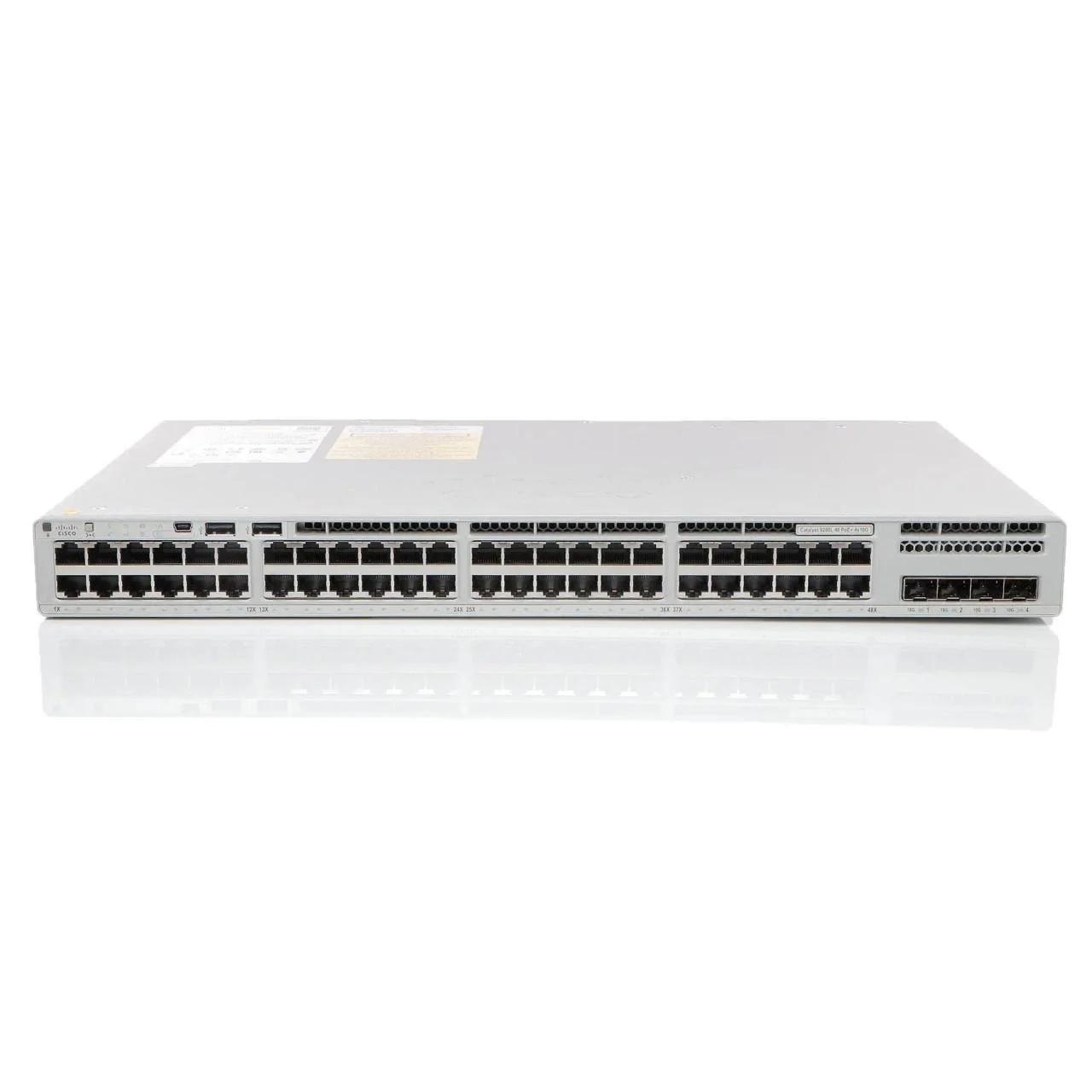

Cisco Catalyst 9200L Switch (C9200L-48P-4X-E)
The C9200L-48P-4X-E is a Cisco Catalyst 9200L fixed-configuration switch with 48 PoE+ Gigabit Ethernet ports and 4 fixed 1/10G SFP+ uplinks. With Network Essentials licensing, StackWise-80 support, and up to 740W of PoE power from one primary supply, it is designed for high-density branch and campus access networks.
C9200L-48P-4X-E specification
| Model | C9200L-48P-4X-E |
|---|---|
| Product Type | Catalyst 9200L fixed-configuration switch |
| Downlink Ports | 48 × 10/100/1000BASE-T PoE+ ports |
| Uplink Ports | 4 × 1/10G SFP+ fixed uplinks |
| PoE Standard | IEEE 802.3af and IEEE 802.3at PoE+ |
| PoE Power Available | 740W with one PWR-C5-1KWAC; 1,440W with an additional secondary power supply |
| Switching Capacity | 176 Gbps; 256 Gbps with stacking |
| Forwarding Rate | 130.95 Mpps; 190 Mpps with stacking |
| Software | Cisco IOS XE; Network Essentials | Stacking Technology | StackWise-80 |
| Stacking Bandwidth | 80 Gbps |
| Maximum Stack Members | Up to 8 same-license C9200L switches |
| Power Supply | PWR-C5-1KWAC |
| Power Supply Slots | 2 |
| Fans | 2 fixed fans |
| Airflow | Front and sides to back |
| Management Port | 10/100/1000 Ethernet management port, RJ-45 |
| USB Port | USB Type A storage port |
| Chassis Dimensions | 1.73 × 17.5 × 11.3 in. (4.4 × 44.5 × 28.8 cm) |
| Shipping Weight with Packaging | 14.83 kg |
