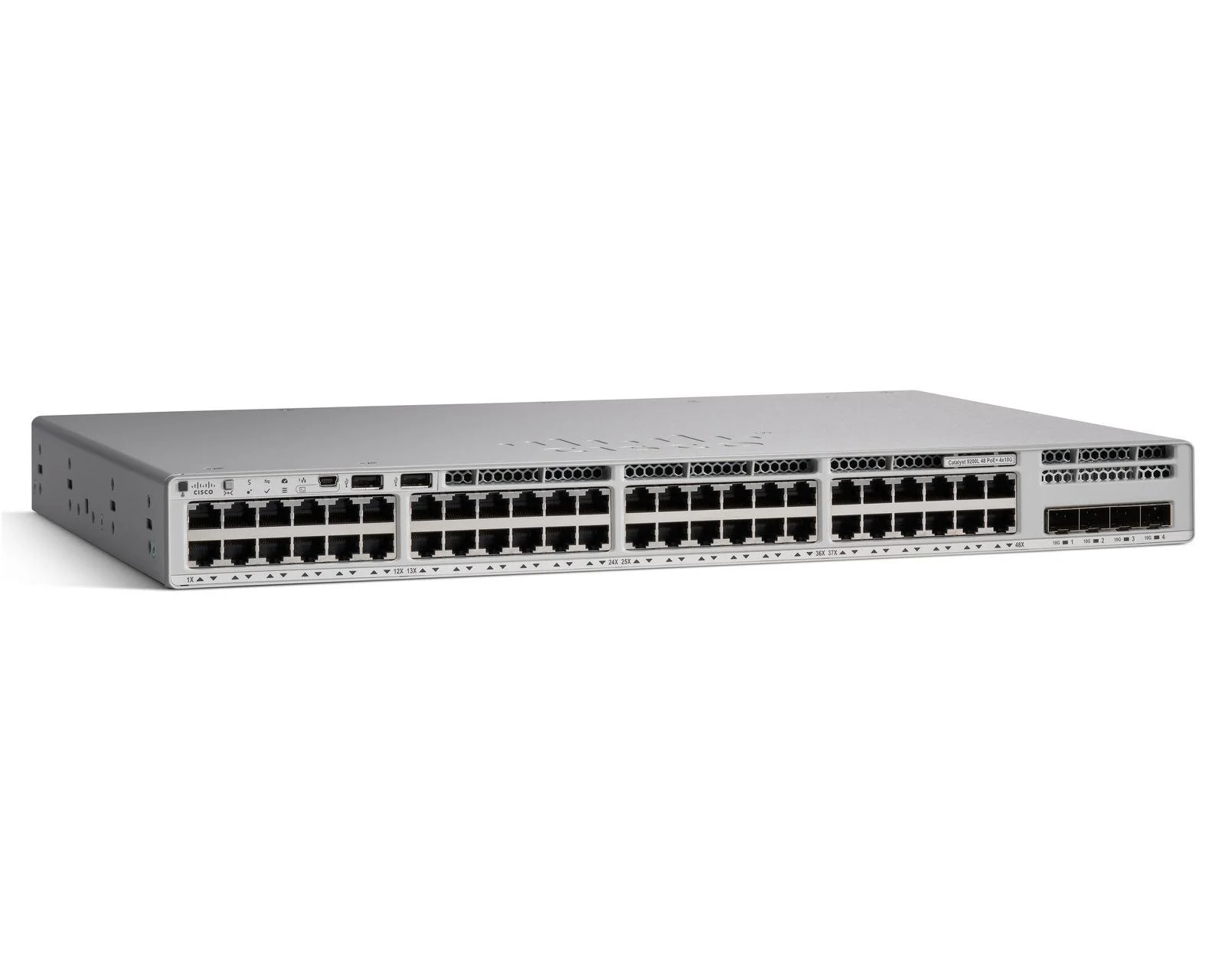

Cisco Catalyst 9200L Switch (C9200L-48PL-4G-E)

The Cisco C9200L-48PL-4G-E is an enterprise-class switch engineered to meet the needs of growing business networks with seamless scalability and robust security features. Built on the reliable Cisco IOS XE platform, this switch is equipped with Network Essentials software, providing advanced networking and management capabilities ideal for medium to large offices. Featuring 48 ports with PoE+ support, the device ensures efficient delivery of both power and data to endpoints like access points, phones, and cameras, streamlining deployments and reducing cabling needs. Integrated redundant power supply and fixed redundant fans enhance business continuity and operational reliability. The C9200L-48PL-4G-E supports a switching capacity of 104 Gbps and a forwarding rate of 77.38 Mpps, delivering fast and uninterrupted data traffic even in complex environments. By combining Cisco’s renowned performance with scalable features, this switch is optimized to support modern business infrastructure, ensure uninterrupted service, and simplify operations for IT managers, distributors, and end users alike across global markets.

C9200L-48PL-4G-E specification

ModelC9200L-48PL-4G-E
BrandCisco
Downlinks total 10/100/1000 or PoE+ copper ports48 ports partial POE+
Uplink configuration4x 1G fixed uplinks
Default primary AC power supplyPWR-C5-600WAC
FansFixed redundant
SoftwareNetwork Essentials
Chassis Dimensions1.73 x 17.5 x 11.3 in / 4.4 x 44.5 x 28.8 cm
Virtual Networks1
Total number of MAC addresses16,000
IPv4 routing entries3,000
IPv6 routing entries1,500
DRAM2 GB
Flash4 GB
VLAN IDs4096
Jumbo frames9198 bytes
Switching capacity104 Gbps
