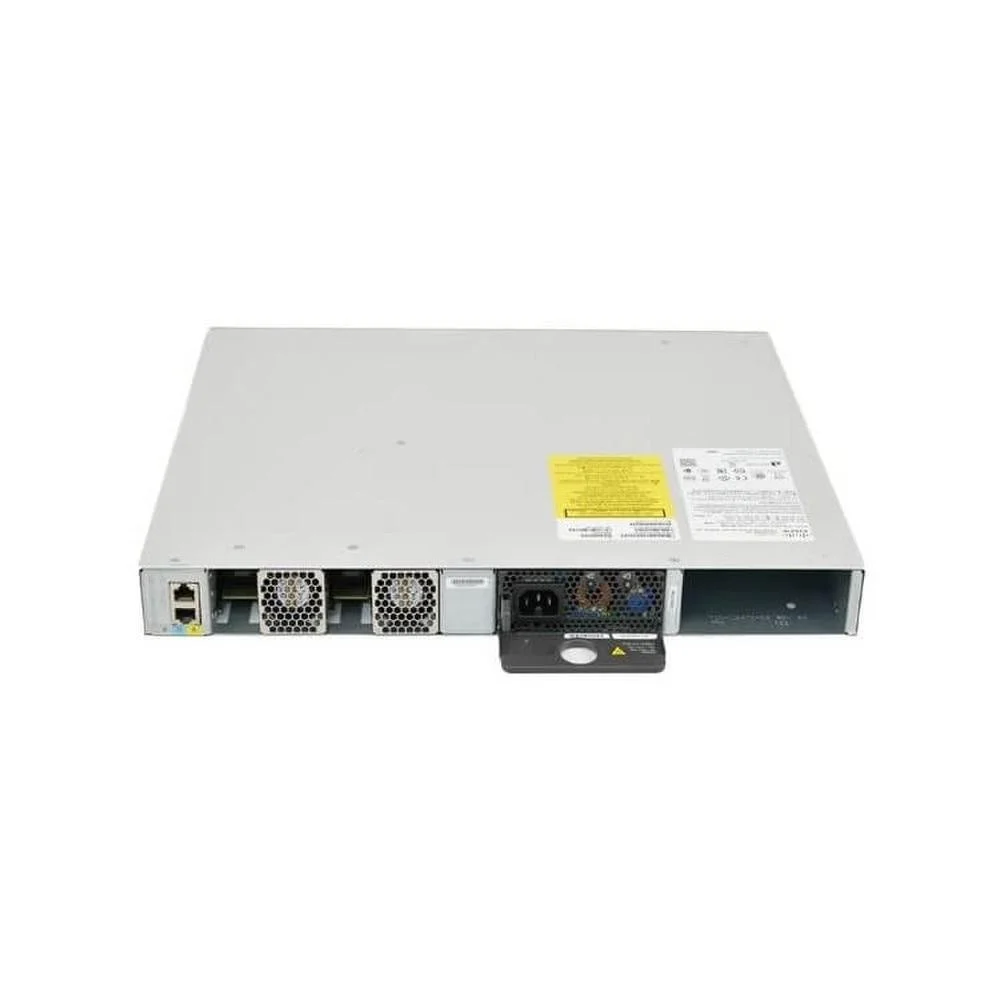

Cisco Catalyst 9200L Switch (C9200L-48PXG-4X-E)
The Cisco C9200L-48PXG-4X-E is an enterprise-class switch built for organizations that require scalable, secure, and high-performance networking solutions. Leveraging the renowned Cisco Catalyst architecture, this unit delivers robust Layer 3 switching capabilities for efficient traffic routing across complex infrastructures. With advanced Power over Ethernet Plus (PoE+) support on all 48 ports, it simplifies device deployment and enhances operational flexibility in dynamic workplaces across Asia, Europe, Africa, and North America.
C9200L-48PXG-4X-E specification
| Model | C9200L-48PXG-4X-E |
|---|---|
| Brand | Cisco |
| Downlinks total 10/100/1000 or PoE+ copper ports | 48 ports full POE+ (12 mGig ports up to 10G, 36 ports up to 1G) |
| Uplink configuration | 4x 10G fixed uplinks |
| Default primary AC power supply | PWR-C5-1KWAC |
| Fans | Fixed redundant |
| Software | Network Essentials |
| Chassis Dimensions | 1.73 x 17.5 x 13.8 in (4.4 x 44.5 x 35.0 cm) |
| Virtual Networks | 1 | Total number of MAC addresses | 16,000 |
| IPv4 routing entries | 3,000 |
| IPv6 routing entries | 1,500 |
| DRAM | 2 GB |
| Flash | 4 GB |
| VLAN IDs | 1024 |
| Jumbo frames | 9,198 bytes |
| Switching capacity | 392 Gbps |
| Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
| Total Switched Virtual Interfaces (SVIs) | 512 |
| Forwarding rate | 291.66 Mpps |
