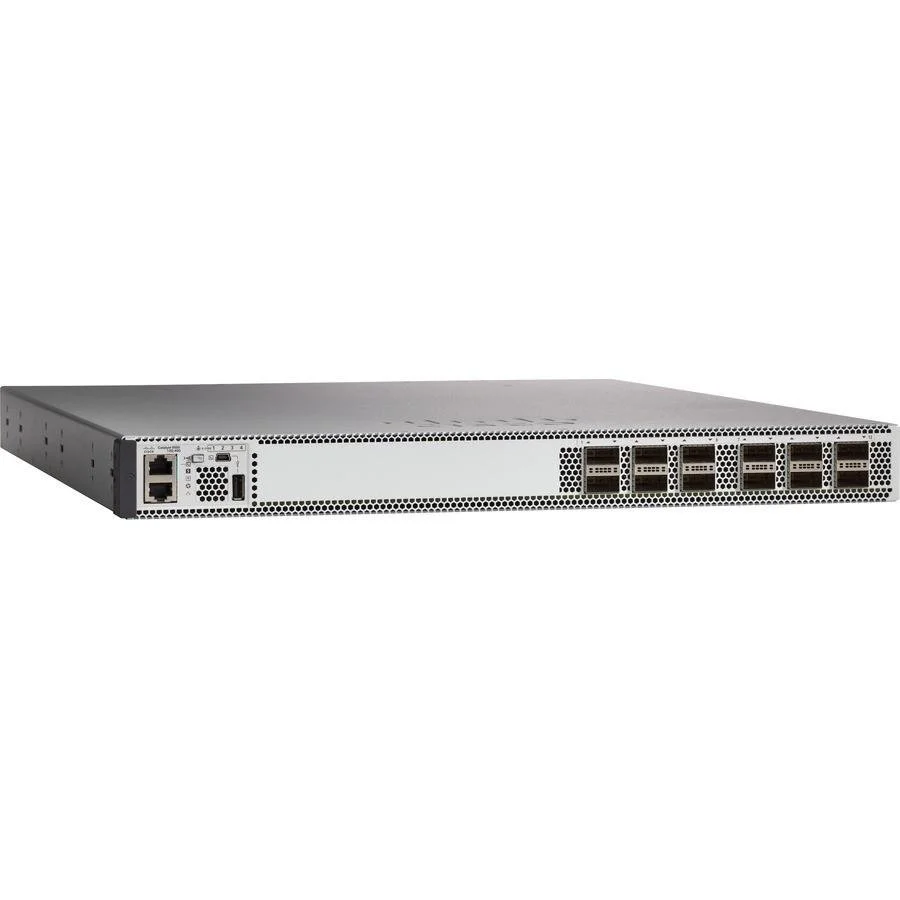

Cisco Catalyst 9500 Switch (C9500-16X-A)
The Cisco C9500-16X-A is a high-performance enterprise-class switch in the 9000 series, engineered to deliver non-stop networking for next-generation business-critical applications. Built on Ciscoβs advanced networking architecture, this c9500-16x-a switch provides unprecedented agility and efficiency for dynamic enterprise environments. With a switching capacity up to 480 Gbps, and advanced hardware providing up to 360 Mpps forwarding rate, the 9000 series is ideal for organizations demanding reliable and scalable network infrastructure. The cisco DNA-ready features of the C9500-16X-A empower distributed teams, remote offices, and digital enterprises with robust security, quality of service, and flexible management, making it suitable for integration in midsize to large networks across global markets. Its compact 1 RU footprint and high MAC/route scalability ensure seamless deployment in modern data centers and enterprise cores, while its support for up to 4,000 VLAN IDs/SVIs addresses even the most complex segmentation needs. The advanced QoS, extensive ACL scaling, and operational endurance in diverse climates make the C9500-16X-A a future-ready switch for distributors, system integrators, and end-users in Asia, Europe, Africa, and North America.
C9500-16X-A specification
| Model | C9500-16X-A |
|---|---|
| Brand | Cisco |
| Switching Capacity | Up to 480 Gbps |
| Forwarding Rate | Up to 360 Mpps |
| Total Number of MAC Addresses | Up to 64,000 |
| Total IPv4 routes (ARP + learned) | Up to 64,000 indirect, up to 80,000 host |
| Total Number of IPv6 Routes | Up to 32,000 indirect, up to 40,000 host |
| QoS ACL Scale | Up to 18,000 |
| Security ACL Scale | Up to 18,000 | FNF Entries | Up to 512,000 |
| DRAM | 16 GB |
| Flash | 16 GB |
| DRAM | 2 GB |
| Flash | 4 GB |
| VLAN IDs | 4,000 |
| Jumbo frames | upto 9198 bytes |
| Power Supply Selection | PWR-C4-950WAC-R or PWR-C4-950WDC-R |
| Dimensions (H x W x D) | 1.73 x 17.5 x 21.52 in |
| Rack Units (RU) | 1 RU |
| Input Voltage | 90 to 264 VAC |
