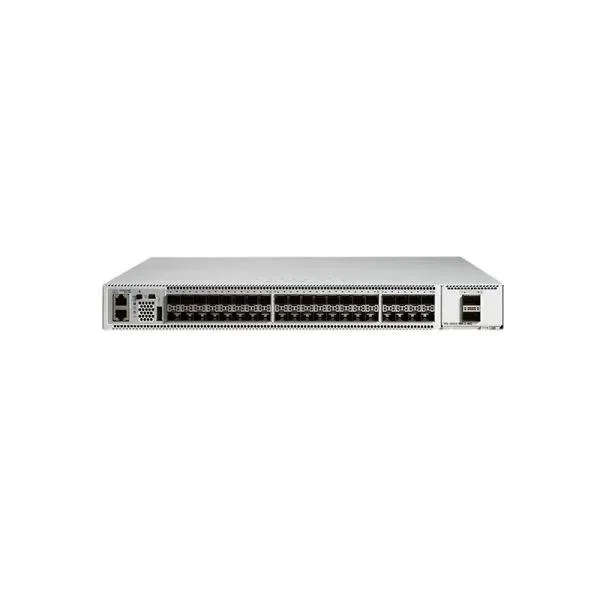

Cisco Catalyst 9500 Switch (C9500-24Q-E)
The Cisco C9500-24Q-E is an enterprise-class switch built to deliver next-generation performance and scalability for campus core, aggregation, and modern enterprise networks. As a Cisco switch engineered with 40 Gigabit Ethernet support, it provides high-density, high-throughput switching essential for dynamic enterprise campus infrastructures. Advanced network features and routing capabilities make the C9500-24Q-E a reliable cornerstone for secure and resilient connectivity. With a switching capacity of up to 1,920 Gbps and a forwarding rate reaching 1,440 Mpps, this switch is designed to power mission-critical applications and rapid data transfers in digital business environments. Optimized for demanding campus and IoT deployments, it enables organizations to meet the growing requirements of digital transformation, supporting robust IOT networking with low-latency data movement.
C9500-24Q-E specification
| Model | C9500-24Q-E |
|---|---|
| Brand | Cisco |
| Switching Capacity | Up to 1920 Gbps |
| Forwarding Rate | Up to 1440 Mpps |
| Total Number of MAC Addresses | Up to 64,000 |
| Total number of IPv4 routes | Up to 64,000 indirect, 32,000 host |
| Total Number of IPv6 Routes | Up to 32,000 indirect, 16,000 host |
| QoS ACL Scale | Up to 18,000* |
| Security ACL Scale | Up to 18,000* | FNF Entries | Up to 512,000* |
| DRAM | 16 GB |
| Flash | 16 GB |
| VLAN IDs | 4,000 |
| Jumbo frames | 9,198 bytes |
| Power Supply Features | Support in the Catalyst 9500 Series |
| Dimensions (H x W x D) | 1.73 x 17.5 x 21.52 in |
| Storage temperature | -4° to 149°F (-20° to 65°C) |
| Input Voltage | 90 to 264 VAC |
