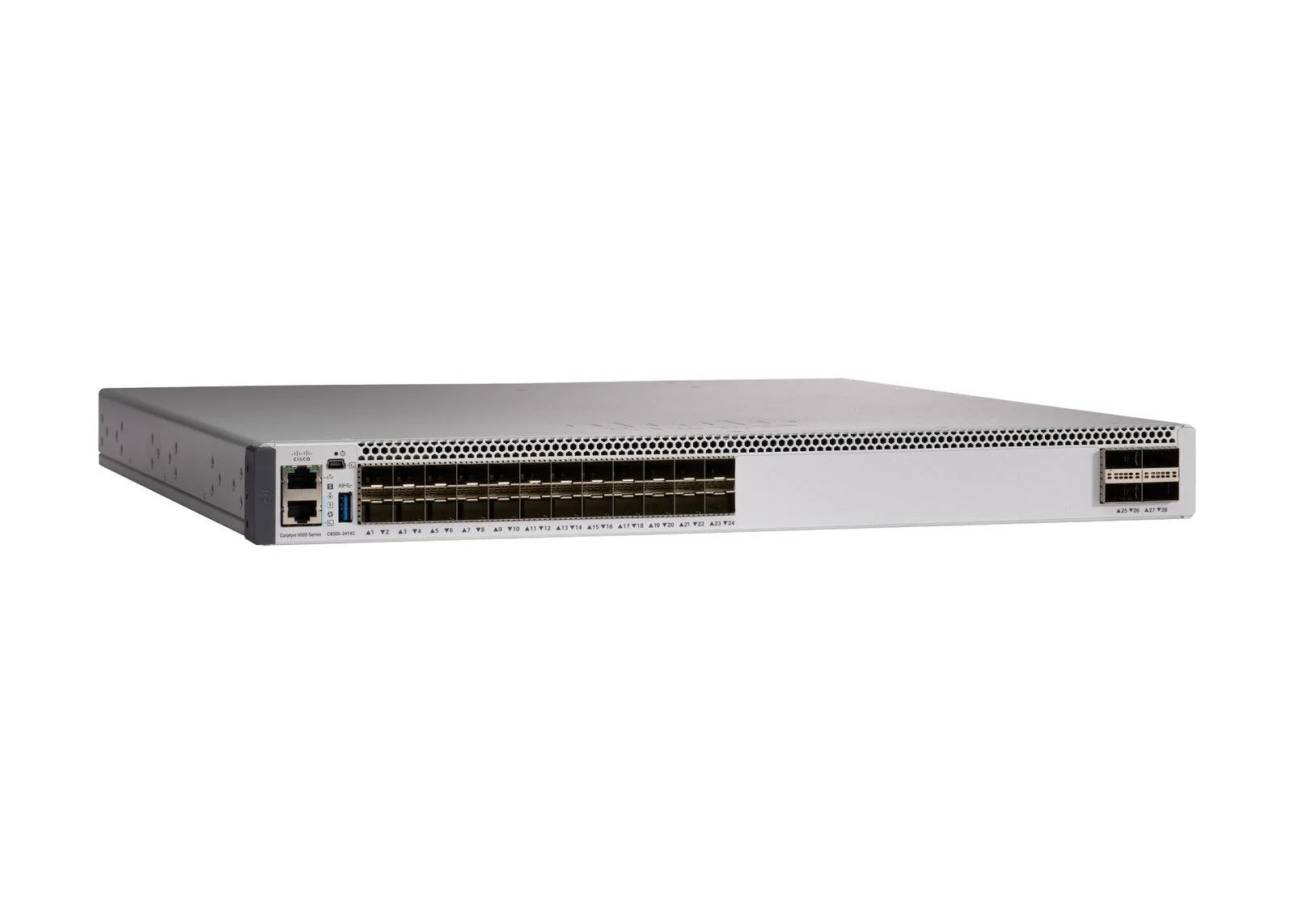

Cisco Catalyst 9500 Switch (C9500-24Y4C-A)
The Cisco C9500-24Y4C-A is a flagship enterprise-class switch designed to empower agile, high-density networking environments. Built upon the advanced Cisco 9500 platform, the C9500-24Y4C-A delivers top-tier scalability and performance for demanding core and aggregation scenarios. With up to 2.0 Tbps switching capacity, it addresses bandwidth challenges faced by modern businesses and critical data centers. The c9500-24y4c-a comes equipped with a robust forwarding rate of up to 1 Bpps, optimized for seamless data flow and reduced latency across large networks. Cisco’s engineering ensures the switch supports an expansive routing table and high entry counts for access lists, making it suitable for complex security and policy deployments.
C9500-24Y4C-A specification
| Model | C9500-24Y4C-A |
|---|---|
| Brand | Cisco |
| Switching Capacity | Up to 2.0 Tbps |
| Forwarding Rate | Up to 1 Bpps |
| Total Number of MAC Addresses | Up to 82,000 |
| Total Number of IPv4 Routes | Up to 212,000 indirect + direct, Up to 90,000 host/ARP |
| Total Number of IPv6 Routes | Up to 212,000 indirect + direct, Up to 90,000 host |
| QoS ACL Scale | Up to 16,000 |
| Security ACL Scale | Up to 27,000 | FNF Entries | Up to 98,000 |
| DRAM | 16 GB |
| Flash | 16 GB |
| DRAM | 2 GB |
| Flash | 4 GB |
| VLAN IDs | 4,000 |
| Jumbo frames | 9,216 bytes |
| Power Supply Selection | C9K-PWR-650WAC-R or C9K-PWR-930WDC-R |
| Dimensions (H x W x D) | 1.73 x 17.5 x 18.0 in |
| Rack Units (RU) | 1 RU |
| Input Voltage | 90 to 264 VAC |
