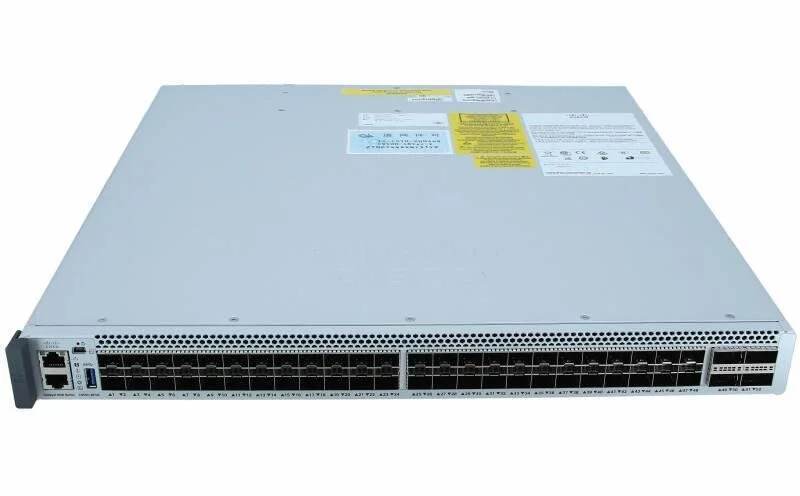

Cisco Catalyst 9200L Switch (C9500-48Y4C-A)
The C9500-48Y4C-A is a Cisco Catalyst 9500 high-performance core and aggregation switch with 48 × 1/10/25G SFP28 ports and four fixed 40/100G QSFP28 uplinks. With up to 3.2 Tbps switching capacity and Network Advantage licensing, it is designed for dense enterprise campus and aggregation deployments.
C9500-48Y4C-A specification
| Model | C9500-48Y4C-A |
|---|---|
| Brand | Cisco |
| Product Type | Cisco Catalyst 9500 Series high-performance fixed core and aggregation switch |
| Network License | Network Advantage |
| Port Configuration | 48 × 1/10/25G SFP28 ports |
| Uplink Ports | 4 × 40/100G QSFP28 fixed uplink ports |
| PoE | Not supported |
| ASIC | UADP 3.0 |
| Switching Capacity | Up to 3.2 Tbps | DRAM | 16GB |
| Flash Memory | 16GB |
| Total Switched Virtual Interfaces (SVIs) | 4,000 |
| VLAN IDs | 4,000 |
| Jumbo Frame | 9,216 bytes |
| Software | Cisco IOS XE |
| Minimum Software Release | isco IOS XE 16.8.1a |
