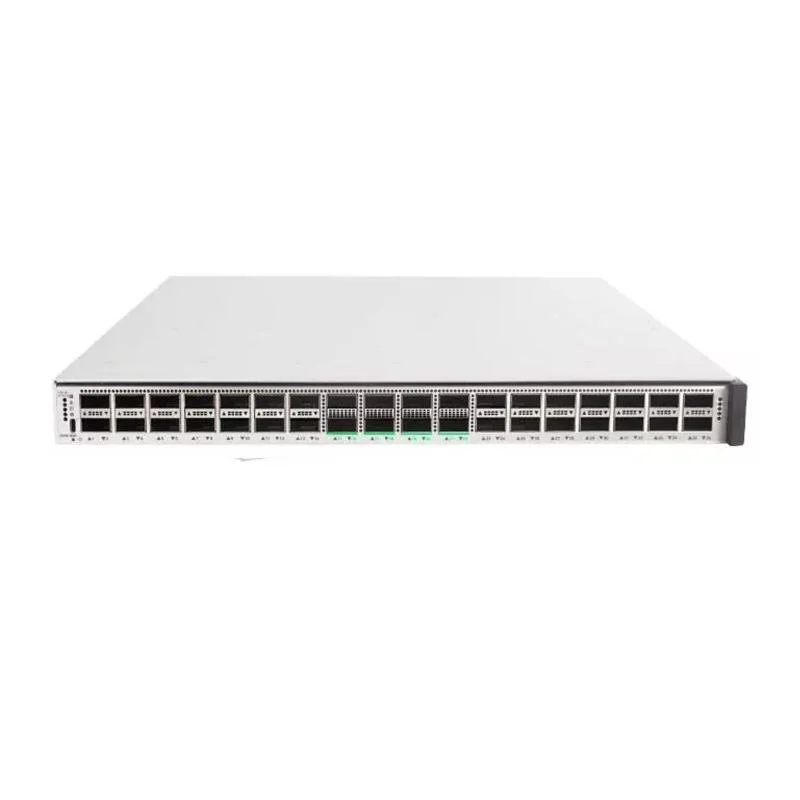

Cisco Catalyst 9500 Switch (C9500X-28C8D-A)
The Cisco C9500X-28C8D-A, part of the Catalyst 9500 series, is a high-performance, fixed-core, enterprise-class switch designed for core and distribution layers. Engineered for intent-based networking, it supports advanced security, automation, and performance across your enterprise. This switch is built to meet the rigorous demands of modern IT environments, ensuring reliability and scalability.
C9500X-28C8D-A specification
| Model | C9500X-28C8D-A |
|---|---|
| Brand | Cisco |
| Series | Catalyst 9500 |
| Forwarding Capacity | 6 Tbps |
| Switching Capacity | 3 Tbps |
| Total Number of Interfaces | 36 |
| Network Module | Uplink Modules Available |
| SUplink Ports | 8 x 10/25G + 8 x 100G |
| Ethernet Ports | 28 x 10/25G |
| Power Supply | Dual Redundant Modular Power Supplies |
| Power Consumption | 800W |
| Dimensions (HxWxD) | 1.73 x 17.5 x 21.52 inches |
| VLAN IDs | 4096 |
| Operating Temperature | 32??F to 104??F (0??C to 40??C) |
| Operating Humidity | 5% to 95% (non-condensing) |
| MAC Addresses | 32,000 |
