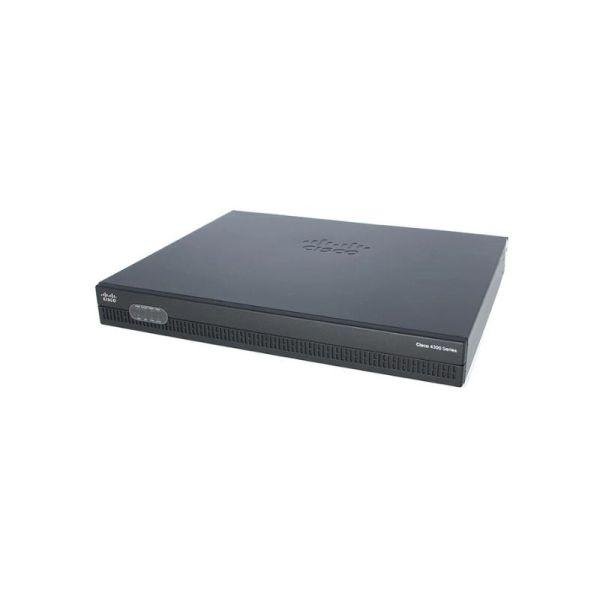

Cisco ISR4331 Router (ISR4331-AX/K9)
The Cisco ISR4331-AX/K9 is an enterprise-class integrated services router designed for secure WAN edge deployments in branch and campus networks. Delivering 100Mbps to 300Mbps aggregate throughput, it consolidates routing, services, and application performance in a compact 1RU platform. Three onboard 10/100/1000 WAN/LAN ports plus dual SFP-based interfaces simplify mixed copper-fiber connectivity, while modular NIM and service-module slots allow flexible expansion across Asia, Europe, Africa, and North America.
ISR4331-AX/K9 specification
| Model | ISR4331-AX/K9 |
|---|---|
| Brand | Cisco |
| Aggregate Throughput | 100Mbps to 300Mbps |
| Total Onboard WAN or LAN 10/100/1000 Ports | 3 |
| RJ-45-based Ports | 2 |
| SFP-based Ports | 2 |
| Enhanced Service-Module Slots | 1 |
| Doublewide Service-Module Slots | 0 |
| NIM Slots | 2 |
| OIR (All I/O Modules) | yes |
| Onboard ISC Slot | 1 |
| Default DDR3 ECC DRAM (Combined Control/Services/Data Planes) | 4GB |
| Maximum DDR3 ECC DRAM (Combined Control/Services/Data Planes) | 16GB |
| Default DDR3 ECC DRAM (Data Plane) | NA |
| Maximum DDR3 ECC DRAM (Data Plane) | NA |
| Default DDR3 ECC DRAM (Control/Services Plane) | NA |
| Maximum DDR3 ECC DRAM (Control/Services Plane) | NA |
| Default Flash Memory | 4GB |
| Maximum Flash Memory | 16GB |
| External USB 2.0 Slots (Type A) | 1 |
