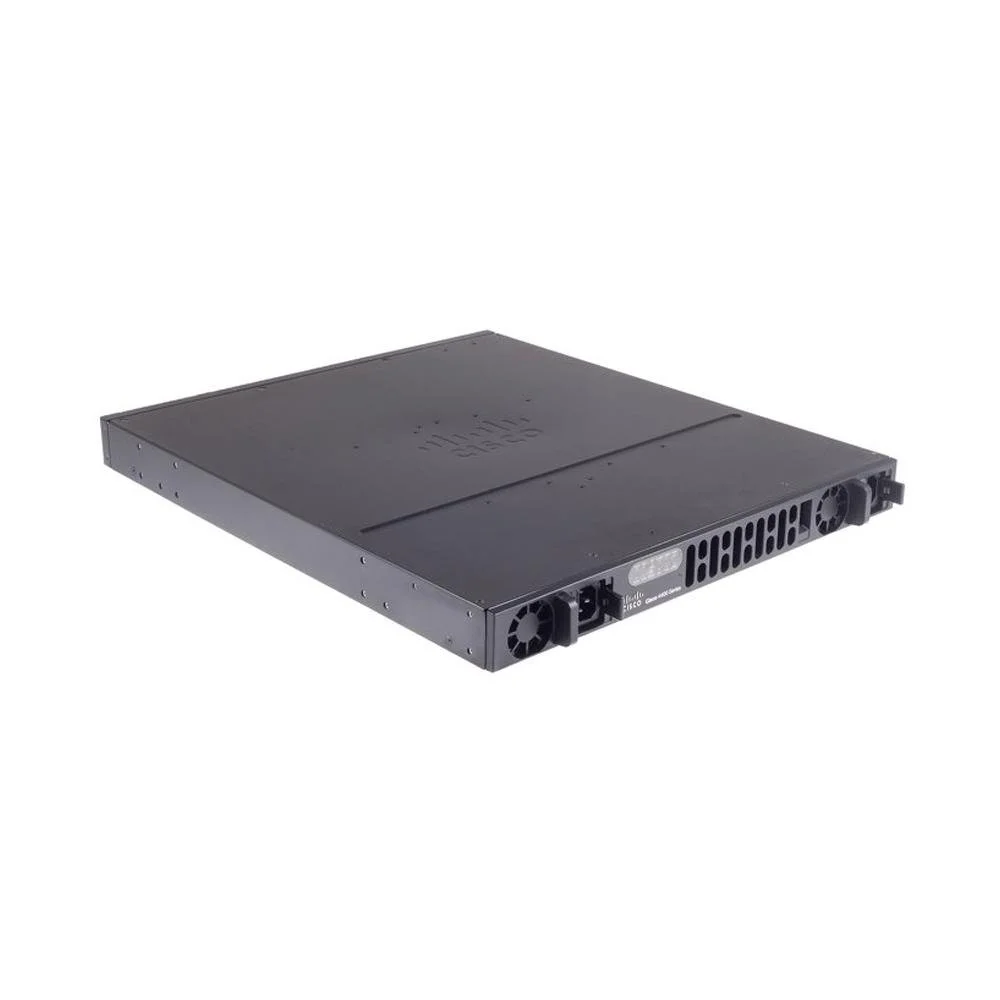

Cisco ISR 4000 Router (ISR4431-SEC/K9)
The Cisco ISR4431-SEC/K9 is an enterprise-class integrated services router designed for secure branch and campus connectivity. Delivering 500Mbps to 1Gbps aggregate throughput, it supports high-performance WAN services and advanced security in a compact 1RU form factor. With 4 onboard 10/100/1000 WAN/LAN ports and 4 SFP-based interfaces, the ISR 4431 router provides flexible copper and fiber deployment options for growing networks. Hot-swappable NIM slots and OIR support simplify upgrades and minimize downtime.
ISR4431-SEC/K9 specification
| Model | ISR4431-SEC/K9 |
|---|---|
| Brand | Cisco |
| Type | Cisco ISR4431/K9 with Security Bundle |
| Aggregate Throughput | 500Mbps to 1Gbps |
| Total Onboard WAN or LAN 10/100/1000 Ports | 4 |
| RJ-45-based Ports | 4 |
| SFP-based Ports | 4 |
| Enhanced Service-Module Slots | 0 |
| Doublewide Service-Module Slots | 0 |
| NIM Slots | 3 |
| OIR (All I/O Modules) | yes |
| Onboard ISC Slot | 1 |
| Default Memory DDR3 ECC DRAM (Combined Control/Services/Data Planes) | 4GB |
| Maximum Memory DDR3 ECC DRAM (Combined Control/Services/Data Planes) | 16GB |
| Default Memory DDR3 ECC DRAM (Data Plane) | 2GB |
| Maximum Memory DDR3 ECC DRAM (Data Plane) | 2GB |
| Default Memory DDR3 ECC DRAM (Control/Services Plane) | 4GB |
| Maximum Memory DDR3 ECC DRAM (Control/Services Plane) | 16GB |
| Default Flash Memory | 8GB |
| Maximum Flash Memory | 32GB |
| External USB 2.0 Slots (Type A) | 2 |
