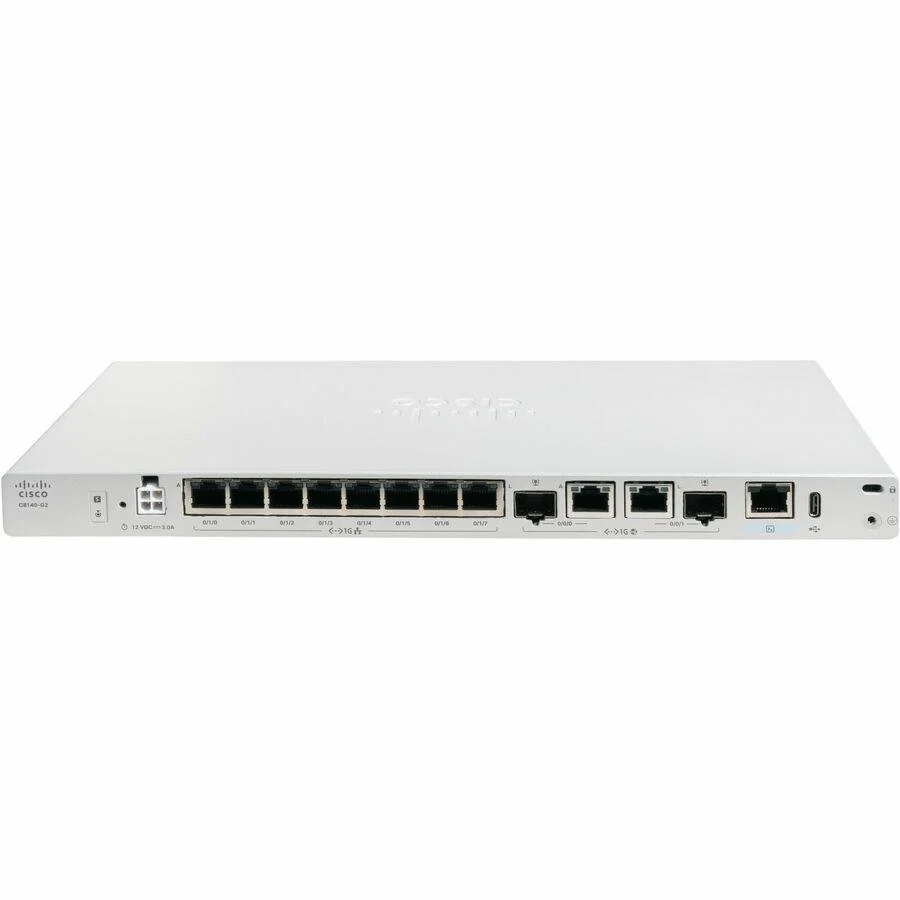

Cisco Router
(C8140-G2)
The Cisco C8140-G2 Secure Router is a mid-range member of Cisco's 8100 Series Secure Routers, designed for small and medium branch offices, retail locations, and managed service deployments. It combines enterprise-grade routing, integrated security, and cloud-managed networking in a compact, fanless desktop platform. The C8140-G2 is ideal for organizations that need reliable WAN connectivity with advanced security and simplified deployment.
C8140-G2 Specifications
| WAN ports | 2 x 1GE RJ-45/SFP combo |
| Flex ports | 2 x GE RJ-45 |
| LAN Ports | 6 x 1GE RJ-45 |
| Management port | 1 x RJ-45 console |
| Storage | 1 x USB Type C 3.0 OOB Mgmt |
| External Power Supply | 66W |
| Typical Power | 20W |
| Dimensions (H x D x W) | 1.09 in x 6.9 in x 12.7 in |
| MTBF | > 100,000 hours |
| Mounting Options | Rackmount, Desktop, Under Desk, Din-Rail/Wall mount |
| Chassis weight | |
| Temperature | Operating Temperature: 0° to 40°C at sea level, 1°C/1000 ft derating from 40°C ; Non-Operating Temperature: -40° to +70°C (-40° to +158°F) |
| Humidity | Operating Conditions Humidity: 5% to 85% relative humidity (noncondensing) ; Non-Operating Conditions Humidity: -40° to +70°C (-40° to +158°F) |
| Altitude | Operating Altitude:0 to 10,000 ft (0 to 3048 m) ; Non-Operating Altitude: 0 to 15,000 ft (0 to 4572 m) |
| Forwarding (512B) | 5.6 Gbps |
| IPsec (512B) | 1.5 Gbps |
| Number of IPv4 Routes | 280K |
| Number of IPv4 ACLs | 2K |
| Number of IPv4 ACEs | 5K |
| Number of IPv6 Routes | 260K |
| Number of NAT Sessions | 100K |
| Number of VRFs | 1K |
| Number of IPSec Tunnels | 250 |
