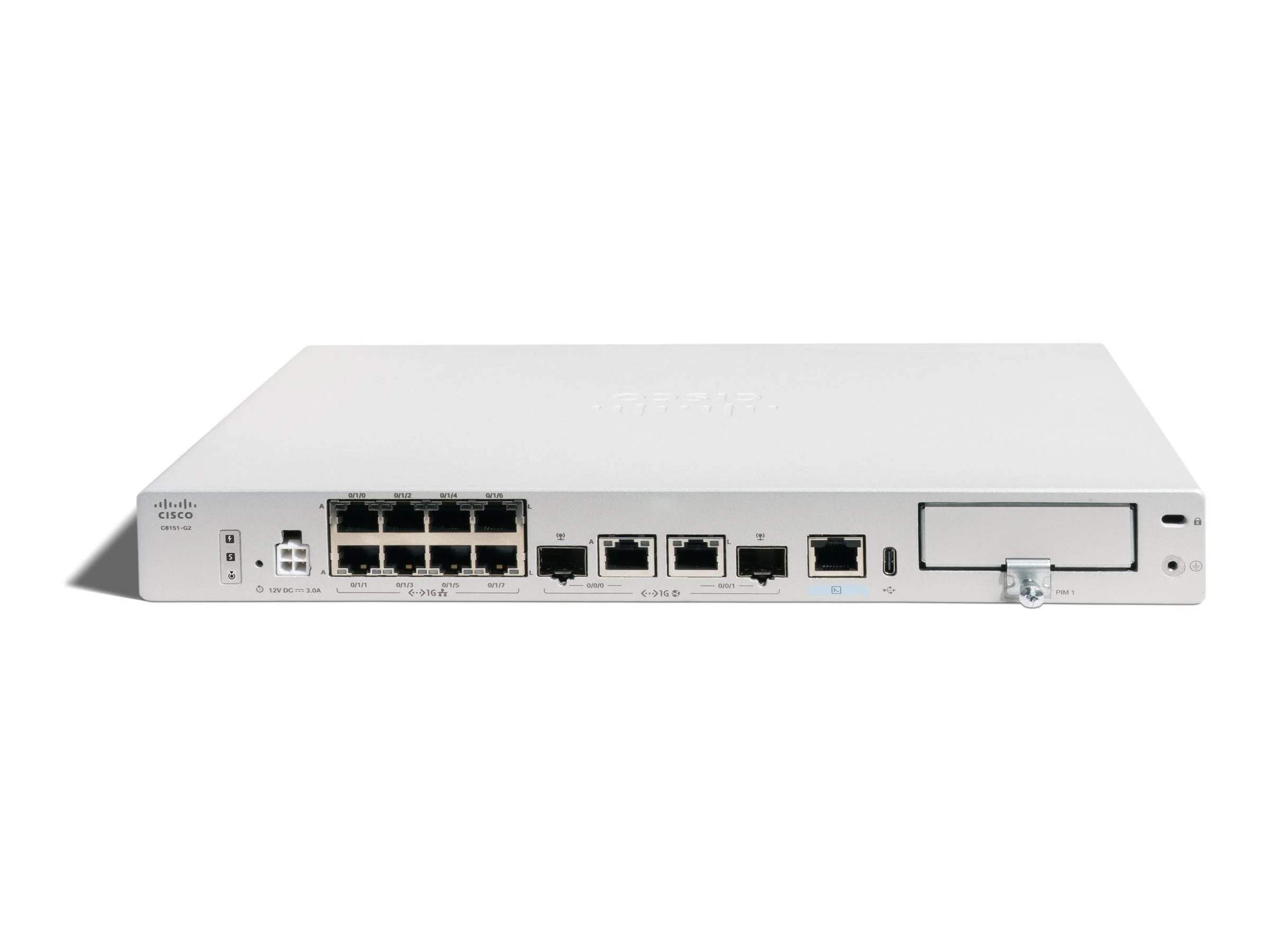

Cisco Router
(C8151H-C-G2)
The Cisco C8151H-C-G2 is a next-generation Cisco 8100 Series Secure Router designed for branch offices, retail locations, enterprise sites, and SD-WAN deployments. It combines high-performance routing, integrated 5G cellular connectivity, advanced security, and cloud-managed SD-WAN in a compact, fanless platform. Unlike the standard C8151-G2, the C8151H-C-G2 features an embedded 5G Release 17 modem, eliminating the need for a separate pluggable cellular module.
C8151H-C-G2 Specifications
| WAN ports | 1 x 1GE RJ-45/SFP combo ; 1 x 10G BASE-T |
| Flex ports | 2 x GE RJ-45 |
| LAN Ports | 6 x 1GE RJ-45 |
| Cellular | Embedded 5G 3GPP Release 17 module with dual nano SIM slots |
| Management port | 1 x RJ-45 console |
| Storage | 1 x USB Type C 3.0 OOB Mgmt |
| External Power Supply | 66W |
| DSL | Embeded DSL ; VAI -> VDSL/ADSL over ISDN (Annex B/J) ; VAP –> VDSL/ASDL over POTS (Annex A) |
| Typical Power | 25W |
| SD-WAN Capable | Yes |
| Dimensions (H x D x W) | 1.57 in x 7.8 in x 10.8 in |
| MTBF | > 100,000 hours | Mounting Options | Rackmount, Desktop, Under Desk, Din-Rail/Wall mount |
| Chassis weight | 5.1 lb |
| Temperature | Operating Temperature: 0° to 40°C at sea level, 1°C/1000 ft derating from 40°C ; Non-Operating Temperature: -40° to +70°C (-40° to +158°F) |
| Humidity | Operating Conditions Humidity: 5% to 85% relative humidity (noncondensing) ; Non-Operating Conditions Humidity: -40° to +70°C (-40° to +158°F) |
| Altitude | Operating Altitude:0 to 10,000 ft (0 to 3048 m) ; Non-Operating Altitude: 0 to 15,000 ft (0 to 4572 m) |
| Forwarding (512B) | 5.6 Gbps |
| IPsec (512B) | 1.5 Gbps |
| Number of IPv4 Routes | 500K |
| Number of IPv4 ACLs | 4K |
| Number of IPv4 ACEs | 10K |
| Number of IPv6 Routes | 500K |
| Number of NAT Sessions | 100K |
| Number of VRFs | 4K |
| Number of IPSec Tunnels | 250 |
