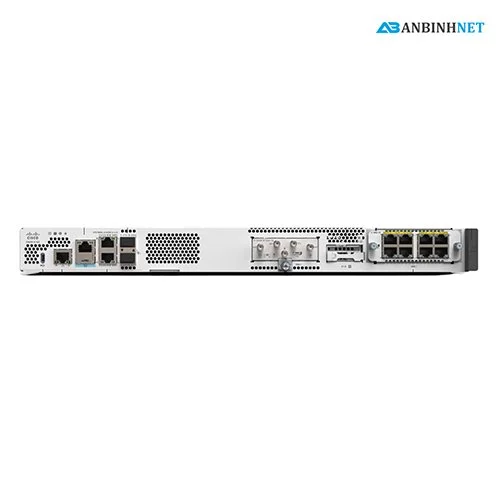

Cisco Router
(C8235-E-G2)
Cisco C8235-E-G2 Secure Router is a modular 1RU secure router designed for medium branch deployments. Combines hardware-accelerated security, 19 Gbps forwarding, SD-WAN, and NGFW with a NIM expansion slot and PIM cellular support on the unified Cisco secure networking platform.
C8235-E-G2 Specifications
| WAN ports | 2x 1/10 GE SFP+; 2x 2.5 GE mGig RJ-45 (2x UPOE+) |
| Expansion slots | 1x NIM |
| Cellular slot | 1x PIM |
| Management/console port | 1x RJ-45 Out-of-Band (OOB) mgmt.; 1x RJ-45, 1x micro-USB console |
| DRAM | 16 GB |
| Storage | 16 GB |
| Power supply (default) | 140W AC (internal default) |
| Power supply (upgrade options) | 150W AC for PoE |
| Typical power consumption | 34.20W |
| Forwarding (512B) | 19 Gbps |
| IPsec (512B) | 5 Gbps |
| SD-WAN* (512B) | 4 Gbps |
| Threat protection** (EMIX) | 2.4 Gbps |
| IPv4/IPv6 routes | 1.5M |
| IPsec tunnels | 700 |
| IPv4 Access Control Lists (ACLs) | 3000 |
| IPv4 Access Control Entries (ACEs) | 15,000 |
| Network Address Translation (NAT) sessions | 1.5M |
| Virtual Route Forwarding (VRF) instances | 4000 |
