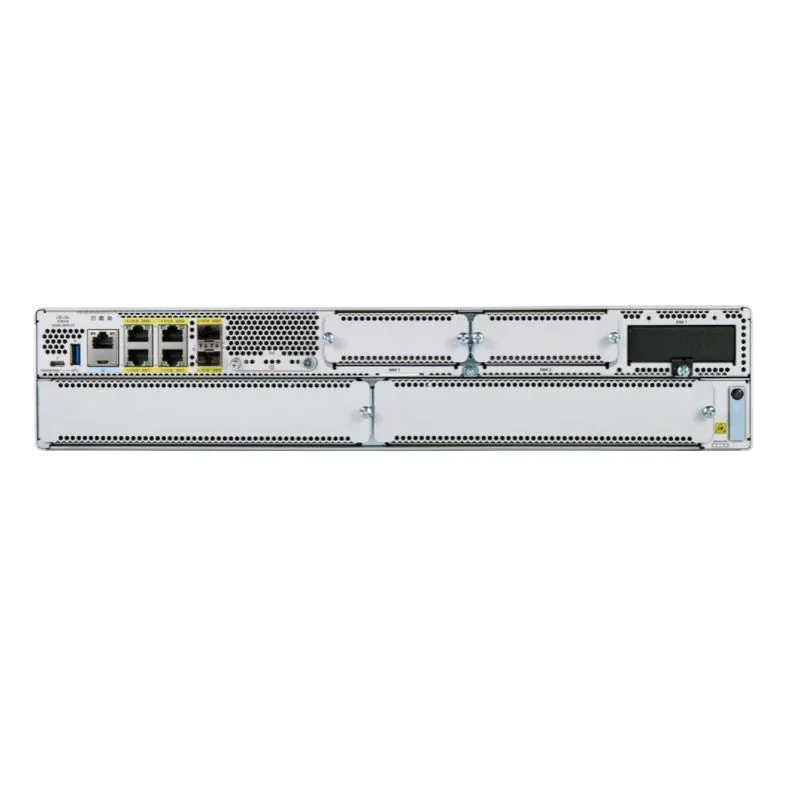

Cisco C8300 Router
(C8300-2N2S-6T)
The Catalyst 8300 Series Edge Platforms have a wide variety of interface options to choose from—ranging from lower and higher module density with backward compatibility to a variety of existing WAN, LAN, voice, and compute modules. Powered by Cisco IOS XE, fully programmable software architecture, and API support, these platforms can facilitate automation at scale to achieve zero-touch IT capability while migrating workloads to the cloud. Catalyst 8300 Series Edge Platforms also come with Trustworthy Solutions 2.0 infrastructure that secures the platforms against threats and vulnerabilities with integrity verification and remediation of threats.
C8300-2N2S-6T Specifications
| Description | C8300 2RU w/ 1G WAN (2 SM and 2 NIM slots, and 6 x 1-Gigabit Ethernet ports) |
| Multicore processors | Intel x86 CPU with 8 GB memory default |
| Embedded IPsec VPN hardware acceleration | Up to 5 Gbps of IPSec Internet Mix (IMIX) traffic |
| Integrated Gigabit Ethernet ports | 6 built-in 10/100/1000/10G Ethernet ports for WAN or LAN 2 SFP Ethernet ports, 4 RJ45 ports |
| Flash memory support | 8-GB flash |
| Modularity and form factor | 1RU and 2RU form factor Supports SM, NIM, and Pluggable Interface Module (PIM) slots |
| 1G port density | 6 |
| DRAM | 8 GB |
| Storage (M.2 SSD) default | 16 GB |
| SD-WAN IPsec Throughput (1400Bytes, clear text) | Up to 1.9Gbps |
| SD-WAN IPsec Throughput (IMIX*, clear text**) | 1.75Gbps |
| SD-WAN Overlay Tunnels scale | 6000 |
| IPv4 Forwarding Throughput (1400Bytes) | Up to 19.7Gbps |
| IPsec Throughput (1400Bytes, clear text**) | Up to 1.9Gbps |
| Number of IPsec SVTI Tunnels | 4000 |
| Number of ACLs per system | 4000 |
| Number of IPv4 ACEs per system | 72K |
| Number of IPv4 Routes | 1.6M w/ default 8GB, up to 4M w/ 32GB |
| Number of IPv6 Routes | 1.5M w/ default 8GB, up to 4M w/ 32GB |
| Number of Queues | 16K |
| Number of NAT Sessions | 1.2M w/ default 8GB, up to 2M w/ 32GB |
