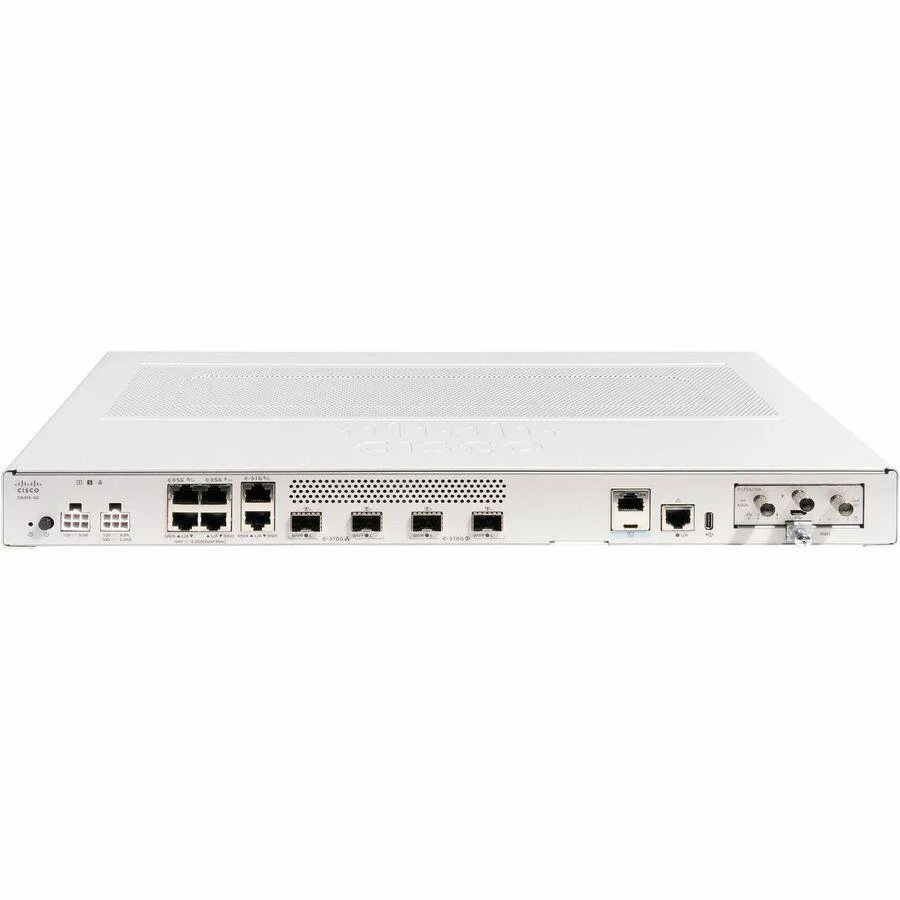

Cisco Router
(C8355-G2)
The Cisco C8355-G2 Secure Router is a next-generation fixed-configuration branch router in the Cisco 8300 Series Secure Routers. It is designed for medium to large branch offices that require high-performance routing, SD-WAN, integrated security, and high-speed connectivity in a compact 1RU platform. Unlike the modular C8375-E-G2, the C8355-G2 is a fixed-port platform, making it ideal for deployments where expansion slots are not required.
C8355-G2 Specifications
| WAN ports | 2 x 10G SFP/SFP+ 2 x 5G mGig RJ45 (2x UPoE+) |
| Flex ports | 2 x 5G mGig RJ45 (2x UPoE+) ; 2 x 1G RJ45 |
| LAN Ports | 2 x 10G SFP/SFP+ |
| Cellular Slot | 1 x PIM |
| Power supply | 400W AC ; 400W DC ; 400W HVDC |
| DRAM | 16 GB (default) |
| Storage | 16 GB (default) ; 32 GB ; 600 GB ; 2 TB |
| Power Supply (Default -Dual PSU) | 110W AC (External Adapter) |
| Power Supply (Upgrade options) | 230W AC + PoE (PoE Budget - 120W) |
| Typical Power Consumption (with default PSU and with no modules) | 45W |
| Forwarding (512B) | 38 Gbps |
| IPsec (512B) | 20 Gbps |
| SD-WAN* (512B) | 8.7 Gbps |
| Threat Protection* (EMIX) | 3.9 Gbps |
| IPv4/IPv6 routes | 2M |
| IPsec tunnels | 3500 |
| IPv4 ACLs | 4000F |
| IPv4 ACEs | 20K |
| NAT Sessions | 1.5M |
| VRFs | 4000 |
| IPv4 ACEs | 20K |
| Dimensions (H x W x D) | 1.73 in x 17.5 in x 16.25 in |
| Rack Units (RU) | 1 RU |
| Chassis weight | 14.3 lbs (with 2X AC power supplies and fan tray |
| Input voltage | AC: 85 to 264 VAC ; DC: -40 to 72V; 48V nominal |
| Operating temperature | 0 to 40°C (32° to 104°F), up to 10,000 feet ; 0 to 45°C (32° to 113°F), up to 6000 feet ; For NEBS, -5 to 55°C (23° to 131°F), up to 6000 feet |
| Storage temperature | -40 to 70°C ; -40° to 158°F |
| Relative humidity (noncondensing) | Operating: 5 to 85% ; Non-operating and Storage: 5 to 95% |
