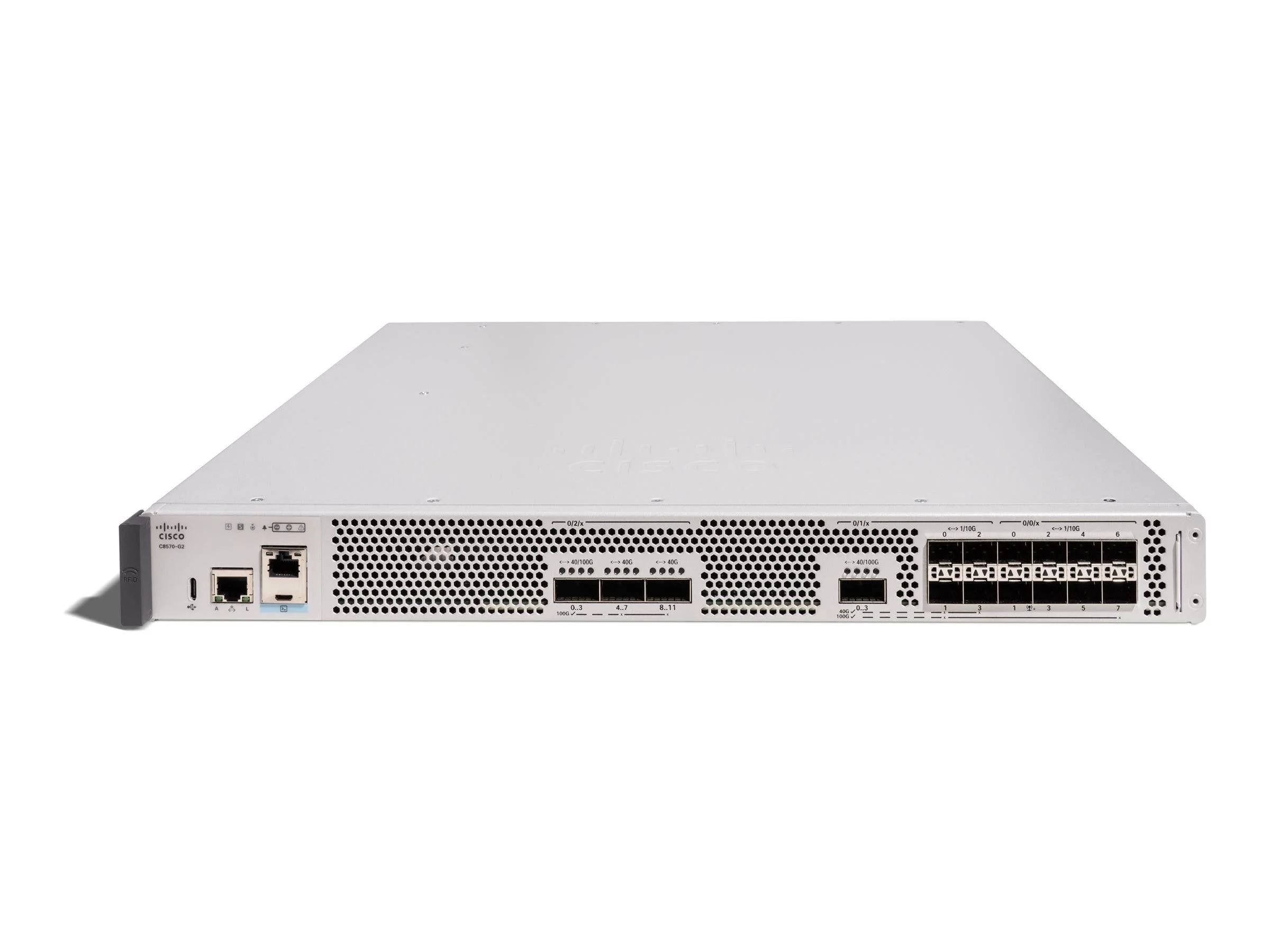

Cisco Router
(C8570-G2)
The Cisco C8570-G2 Secure Router is a high-performance enterprise WAN aggregation router in the Cisco 8500 Series Secure Routers. It is designed for data centers, colocation facilities, large campuses, and service provider edge deployments, where high-speed routing, encryption, and security are required. The platform runs Cisco IOS XE and uses Cisco's 3rd Generation Quantum Flow Processor (QFP) ASIC to accelerate routing, VPN encryption, and security services in hardware.
C8570-G2 Specifications
| WAN ports | 12x 1/10GE (SFP+) ; 2x 40GE (QSFP+) ; 2x 40/100GE (QSFP28) |
| WAN Mac | Supported in all built-in ports |
| Management Port | 1x RJ-45 OOB Management ; 1x RJ-45 / 1x Micro-USB |
| DRAM | 32 GB (default) ; 64 GB |
| Storage | 480 GB (default) |
| Power supply | 750 W AC ; 950 W AC |
| Forwarding (512B) | Up to 190 Gbps |
| IPsec (512B) | Up to 63 Gbps |
| SD-WAN* (512B) | Up to 21 Gbps |
| IPv4/IPv6 routes | 8M |
| IPsec tunnels | 10,000 |
| IPv4 ACEs | 3000 |
| IPv4 Access Control Entries (ACEs) | 380K |
| NAT Sessions | 16M |
| VRFs | 8K |
| Dimensions (H x W x D) | 1.73 in. x 17.50 in. x 18.46 in |
| Chassis weight with 2x AC power supplies and fan tray | 21 lbs |
| Altitude | -500 to 10,000 feet (-152 to 3048 meters) |
