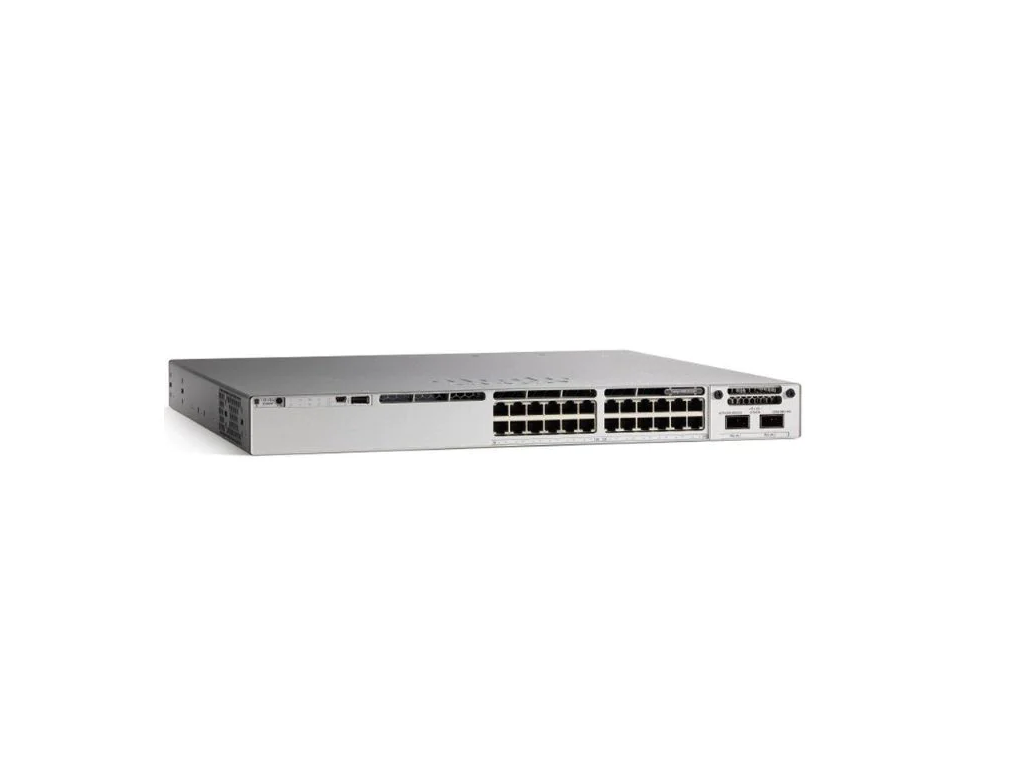

Cisco Switch Catalyst 9300
Optimize your LAN operations and get proactive network management with the Cisco Switch Catalyst 9300 Series. This series delivers industry-leading IoT networking solutions, cloud-ready approaches, and next-level mobility. The Catalyst 9300 Series also provides the foundation for Software-Defined Access (SD-Access), Cisco’s leading enterprise architecture.
Its key features include:
Optimized platform for high-density Wi-Fi 6 and 802.11ac Wave 26
Cisco Unified Access Data Plane (UADP) 2.0 Application-Specific Integrated Circuit (ASIC)
x86 CPU complex with 8-GB memory
16 GB of flash and external USB 3.0 SSD pluggable storage slot
Up to 480 Gbps of local stackable switching bandwidth
Get smart, simple, and secure unified access now with the Cisco Switch Catalyst 9300 Series!
Cisco Switch Catalyst 9300 Specifications
Services and Slot Density
| Embedded hardware-based cryptography acceleration (IPsec + SSL) | Yes |
| RJ-45 onboard LAN/WAN 10/100/1000 ports | 2 |
| EHWIC slots | 2 |
| Doublewide EHWIC slots (use of a doublewide EHWIC slot will consume 2 EHWIC slots) | 1 |
| Cisco Integrated Services Module (ISM) slots | 0 |
| Memory (DDR2 DRAM): Default/maximum | 512 MB/512 MB |
| USB flash memory (internal): Default/maximum | 256 MB/256 MB |
| External USB flash-memory slots (Type A) | 1 |
| USB console port (mini-Type B) (up to 115.2 kbps) | 1 |
| Serial console port (up to 115.2 kbps) | 1 |
| Serial auxiliary port (up to 115.2 kbps | 1 |
| Integrated power supply | AC and DC power-supply models |
| Power-supply options | POE (external) – on AC models only |
| Redundant-power-supply support | No |
Power Specifications
| AC input voltage | 100-240V ~ |
| AC input frequency | 47-63 Hz |
| AC input current range AC power supply (maximum) (amps) | 1.5-0.6 |
| AC input surge current | <50A |
| Typical power (no modules) | 25W |
| Maximum power capacity with AC power supply | 60W |
| Maximum power capacity with PoE power supply (platform only) | 70W |
| Maximum PoE device power capacity with PoE power supply | 80W |
| DC power input | 32-60 VDC, 4A, positive or negative, single source |
| DC input wire size | AWG 14 (2.0 mm2) |
| Safety ground-wire size | AWG 14 (2.0 mm2), minimum |
| Wire terminal (lug) | Amp/Tyco No.32957 |
| Overcurrent protection | 20A maximum |
Physical Specifications
| Dimensions (H x W x D) | 1.75 x 13.5 x 11.5 in. (4.45 x 34.29 x 29.21 cm) |
| Rack height | 1 rack unit (1RU) |
| Rack-mount 19 in. (48.3 cm) EIA | Optional |
| Wall-mount (refer to installation guide for approved orientation) | Yes |
| Package Weight | 11.9 lb (5.41 Kg) |
| Weight: With AC power supply (no modules) | 6.75 lb (3.06 Kg) |
| Weight: With PoE power supply (no modules) | 7.5 lb (3.4 Kg) |
| Airflow | Back to sides |
Environmental Specifications
Operating Conditions
| Temperature: 5906 ft (1800m) maximum altitude | 32-104°F (0-40°C) |
| Temperature: 9843 ft (3000m) maximum altitude | 32-77°F (0-25°C) |
| Altitude | 10,000 ft (3,000m) |
| Humidity | 10 to 85% relative humidity (RH) |
| Acoustic: Sound pressure (typical/maximum) | 32.99/58.33 dBA |
| Acoustic: Sound power (typical/maximum) | 41.99/67.22 dBA |
Transportation and Storage Conditions
| Temperature | -40 to 158°F (-40 to 70°C) |
| Humidity | 5 to 95% RH |
| Altitude | 15,000 ft (4,570m) |
Regulatory Compliance
| Safety | UL 60950-1
CAN/CSA C22.2 No. 60950-1 EN 60950-1 AS/NZS 60950-1 IEC 60950-1 |
| EMC | 47 CFR
Part 15 ICES-003 Class A EN55022 Class A CISPR22 Class A AS/NZS 3548 Class A VCCI V-3 EN 300-386 EN 61000 (Immunity) EN 55024 CISPR 24 EN50082-1 |
| Telecom | TIA/EIA/IS-968
CS-03 ANSI T1.101 IEEE 802.3 RTTE Directive |
