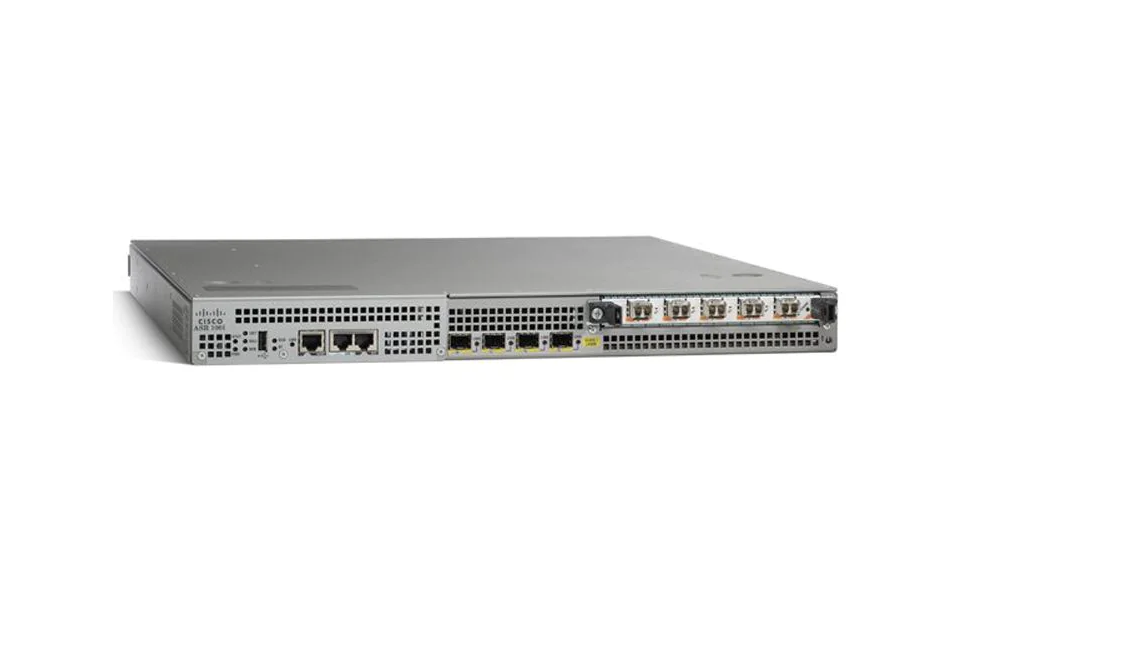

Cisco asr 1001

The Cisco ASR 1001 is support software redundancy, and it is based on a dual-core 2.2GHz processor with 1GB memory, 8GB flash memory, 1 SPA bay, SPA interface processor 10 (SIP10). ASR 1000 series is designed for high-end enterprise, managed services, router reflector and WAN aggregation in order to handle explosive traffic through the network.

Request A Quote

Cisco ISR4451-X/K9 Specifications

AR NETWORK SYSTEMS INTEGRATION PHILIPPINES INC. was established in early 2010. The company specializes in Cisco networking as well as other network equipment vendors. We offer our expertise to provide enterprise-class data, voice and video networking solutions to small, medium and large-scale businesses.

Contact Us

📞 0962-273-9605

📞 (632) 7903-7891

✉️ sales@ansys.ph

✉️ support@ansys.ph

📍 UG25 Cityland 8 #98, Sen. Gil J. Puyat Ave, Makati, 1230 Metro Manila, Philippines


Manufacturer Cisco Systems, Inc
Manufacturer Part Number Cisco ASR 1001
Product Type Aggregation Service Router
Form Factor Desktop - modular - 3U
Connectivity Technology Wired
System Bandwidth 12.5G (default) 5G (upgrade)
Router Processor Dual-core 2.2Ghz processor
Build-in Gigabit Ethernet port 4 * SFP ports
Redundancy Software (license purchase separately)
SIP and Ethernet line card

 Integrated in chassis; not upgradable
Embedded hardware-based encryption up to 1.8-Gbps crypto support throughput
Rack-mounting 19 inch
DRAM Memory 4 GB
Flash Memory 8 GB
Shared port adapters 1 SPA slot
External USB Flash memory 1-GB USB flash-memory support
Cisco QuantumFlow Processor-based platform Enables advanced services to operate at high speeds without the need for additional hardware or blades.
Hardware acceleration Features like QoS, crypto, and access control lists (ACLs) are processed in hardware.
Control and forwarding-plane separation Ability to scale control plane and data plane independent of each other.
expansion Card
  • Cisco 1-port 10GE LAN/WAN-PHY Shared Port Adapter
  • Digital Signal Processor SPA
  • 2 Port Channelized T3/E3 ATM and Circuit Emulation SPA
  • SPA-2XOC12-POS with a license to use 1 port
  • SPA-4XOC3-POS-V2 with a license to use 2 ports
  • 8-port Channelized T1/E1 to DS0 Shared Port Adapter
  • 1-port Channelized STM-1/OC-3c to DS0 SPA, Version 2
  • 2-port Channelized T3 to DS0 Shared Port Adapter, Version 2
  • 2-port Clear Channel T3/E3 Shared Port Adapter, Version 2
  • 4-port Channelized T3 to DS0 Shared Port Adapter, Version 2
  • 4-port Clear Channel T3/E3 Shared Port Adapter, Version 2
  • Cisco 5-Port Gigabit Ethernet Shared Port Adapter
  • Cisco 8-Port Fast Ethernet (TX) Shared Port Adapter
  • Cisco 8-Port Gigabit Ethernet Shared Port Adapter
  • 8-port OC12/STM4 POS Shared Port Adapters
  • 4-port OC-3/STM-1 POS Shared Port Adapters
  • Cisco 1-Port 10GE LAN-PHY Shared Port Adapter
  • 1 port OC12 STM Shared Port Adapter
  • 1 port OC-3c/STM-1 ATM Shared Port Adapter
  • 1-port OC48/STM16 POS/RPR Shared Port Adapters
  • Cisco 2-Port Gigabit Ethernet Shared Port Adapter
  • 2-port OC12/STM4 POS Shared Port Adapters
  • 2-port OC48/STM16 POS/RPR Shared Port Adapters
  • 3 port OC-3c/STM-1 ATM Shared Port Adapter
  • Cisco 4-Port Fast Ethernet (TX) Shared Port Adapter
  • 4-port OC-12/STM-4 POS Shared Port Adapters
  • 4-port OC48/STM16 POS/RPR Shared Port Adapters
  • 8-port OC-3/STM-1 POS Shared Port Adapters
  • 1-port OC192/STM64 POS/RPR XFP Optics
1GB USB Flash Token MEMUSB-1024FT
Router Processor Memory
  • M-ASR1K-1001-4GB
  • M-ASR1K-1001-8GB
  • M-ASR1K-1001-16GB
Feature License
  • Unified Border Element - Enterprise Edition 100 Sessions
  • Unified Border Element Ent, 100 Sessions, Redundancy
  • Unified Border Element Ent, 4000 Sessions, Redundancy
  • Unified Border Element - Enterprise Edition 4000 Sessions
  • Upgrade from 2.5 Gbps to 5Gbps License for ASR 1001
  • Appl. Visibility and Control License for ASR1000 Series
  • Broadband RTU and 500 Sessions License for ASR1000 Series
  • Flex. Pack. Insp License for ASR1000 Series
  • CGN RTU Feature License for up to 2M Sessions on ASR1000
  • GTP add-on to Firewall RTU Feature Licence for ASR1000
  • Firewall/NAT Stateful Inter-Chassis Redundancy License
  • SW Redundancy License for ASR1000 Series
  • IPSEC License for ASR1000 Series
  • Lawful Intercept License for ASR1000 Series
  • FW License for ASR1000 Serie
Managed Services Software
  • Cisco ASR1001 IOS XE - NO PAYLOAD ENCRYPTION UNIVERSAL MS
  • Cisco ASR1001 IOS XE - UNIVERSAL MS
  • Cisco ASR1001 IOS XE - ENCRYPTION UNIVERSAL MS
System Software license
  • IP base license
  • Advanced Enterprise service license
  • IP services license
IOS XE Operating System Cisco IOS XE Software Release 3.2.0S
